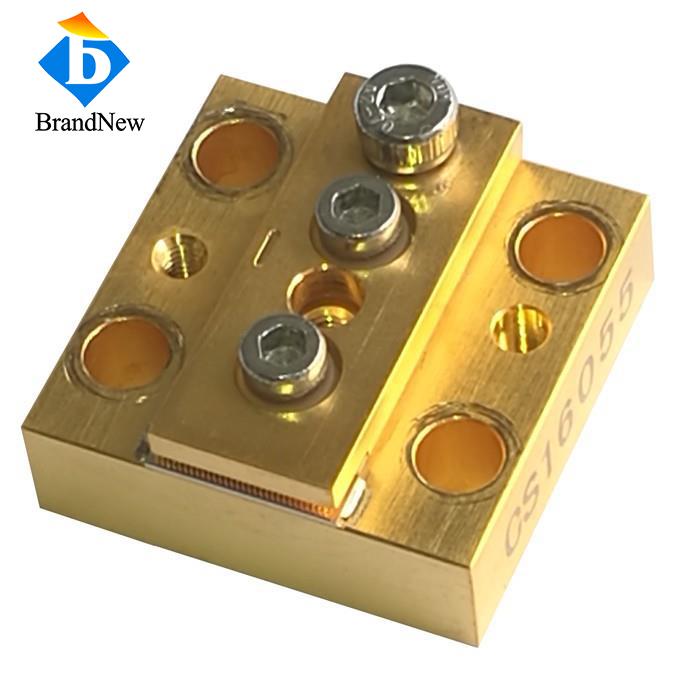

808nm 20W CS Tib Bar Diode Laser
Qhov no yog Conduction Cooled Package (CS-Mount) High Power Laser Diode Bar (Laser Diode Array). Qhov no diode bar lub wavelength yog nyob ib ncig ntawm 808nm. Cov khoom no yog mounted nyob rau hauv peb tus kheej lab.
Nta:
CW ua haujlwm hom, 20W tso zis zog, 808nm nruab nrab wavelength
Conductivity txias pob CS bar
Uniform beam profile, nqaim spectrum
Cov qauv tsim thiab cov neeg siv khoom- tsim pob
Laser bar yog imported los ntawm German, siab stability thiab kev ntseeg tau
Daim ntawv thov:
Khoom -Lub Xeev Laser Pumping (DPSS Laser)
Diode Laser Fiber Coupling
Kev Kho Mob Kho Mob
Kev tshawb fawb & kev sim
Infrared Teeb pom kev zoo
Lwm Cov Kev Lag Luam Kev Lag Luam
Kev kos duab
![{]Q1CGTG9SE$P0ON4BJ}9W1](/Content/upload/201998745/201907231444504586006.png "product-1-1")
Daim ntawv qhia
| Kho qhov muag | |
| Center Wavelength | 808nm ua |
| Wavelength kam rau ua | ± 10nm |
| Tso zis zog | 20W |
| Spectral Width FWM | Tsawg dua lossis sib npaug li 6nm |
| Slope Efficiency | ~1.1W/A |
| Hluav taws xob | |
| Kev khiav hauj lwm tam sim no Iop | 25A |
| Threshold Current Ith | 12A |
| Ua haujlwm Voltage Vop | 2.0V |
| Fais fab Hloov Efficiency | 50% |
| Kub | |
| Ua haujlwm kub | 15 ~ 30 degree |
| Cia Kub | 0-55 degree |
| Kub Coefficient | ~ 0.3nm / degree |
