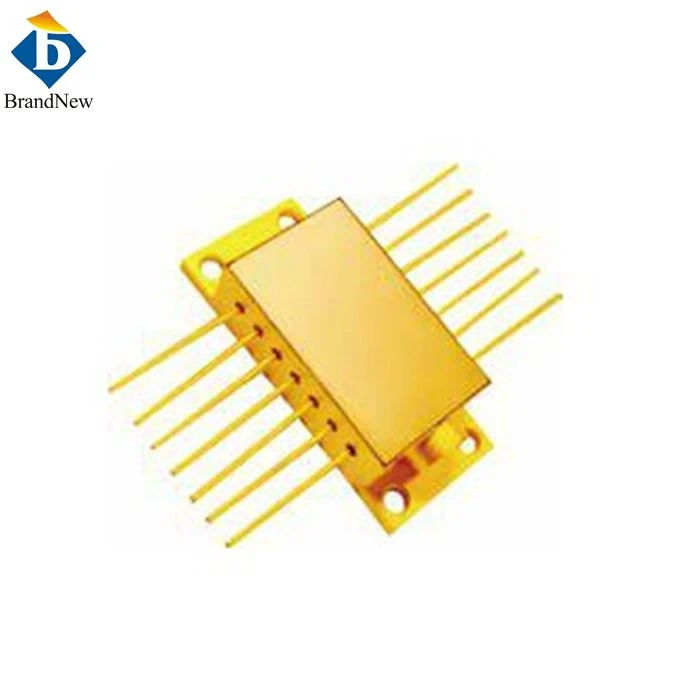

600mW 785nm Free Space Npauj Npaim Laser Diode
Cov ntim no Bragg grating stabilized laser diodes muab ib tug nqaim linewidth, siab zog tov rau Raman Spectroscopy kev tshawb fawb thiab kuaj daim ntaub ntawv. Cov 785nm diode lasers yog qhov chaw pub dawb uas muaj nyob rau hauv npauj npaim ntim nrog kev sib xyaw txias, thermistor thiab PD. Lawv muab txog li 600mW ntawm lub zog ntawm 785nm nyob rau hauv lub wavelength-stabilized, high-power, fiber-coupled laser tsim. Vim yog kev sib koom ua ke VBG lub wavelength yog tsau thiab spectral dav yog nqaim heev. Cov qauv no kuj siv rau hauv metrology, bio-Instrumentation, sensing, thiab analytical instrumentation applications.
Cov yam ntxwv tseem ceeb:
Wavelength Stabilized 785nm ± 0.5nm
Npauj npaim pob nrog Internal Cooler, Thermistor thiab Photodiode
Volume Bragg Grating Stabilized
Spectral Dav:<0.1nm
Daim ntawv qhia:
Yam Tsis Tau: FS785DL600
| Kho qhov muag | |
| Center Wavelength λ | 785nm ua |
| Wavelength kam rau ua | ±0.5nm |
| Tso zis zog | 600mW ib |
| Spectral Width FWM | 0.1nm |
| Slope Efficiency | 0.8W/A |
| Hluav taws xob | |
| Kev khiav hauj lwm tam sim no Iop | 1.09A |
| Threshold Current Ith | 0.36A |
| Ua haujlwm Voltage Vop | 2V |
| PD | <2000μA |
| Thermistor | 10 (± 5%) kΩ (@25 degree) |
| TEC Ua Haujlwm Tam Sim No / Voltage | 2.5A/6.3V |
| Kub | |
| Ua haujlwm kub | 15-35 ° C |
| Cia kub | -20 ~ 50 degree |
| Wavelength Temperature Coefficient | 0.01nm/degree |
Kev kos duab
