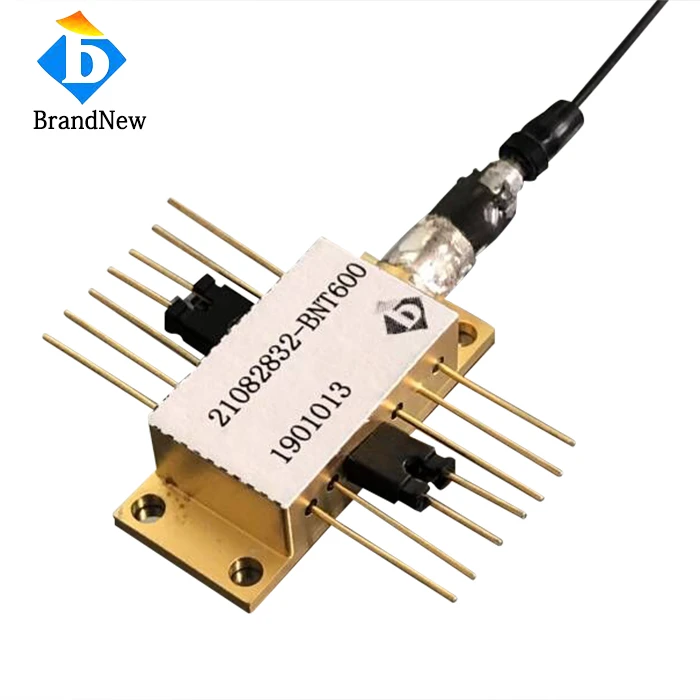

300mW ~ 1W 976nm Ib Hom Npauj Npaim Fiber Coupled LD
Siab zog ib hom laser diode yoj stabilized ± 1nm. LD tau tsim los ua lub twj tso kua mis rau kev lag luam pulsed fiber ntau pre-amplifiers nrog rau erbium doped fiber amplifier (EDFA) laser daim ntaub ntawv. Cov txheej txheem thiab cov txheej txheem ntawm kev sib txuas cov fiber ntau rau lub laser tso cai rau cov zis ntau zog uas ruaj khov nrog lub sijhawm thiab kub. Lub twj tso kua mis siv lub Polarization tswj fiber ntau pigtail thiab fiber ntau Bragg grating tsim rau kev txhim kho wavelength thiab lub zog ruaj khov kev ua tau zoo. Cov cuab yeej ua tiav lub zog siab ntawm 1W.
Yam ntxwv:
Hermetically kaw npauj npaim pob
High tso zis zog
Polarization tswj ib leeg-hom optical fiber
Internal thermoelectric kub twj tso kua mis thiab saib diode
Daim ntawv thov:
EDFA
Kev paub
Fiber amplifier
Daim ntawv qhia:
Yam khoom No.:FC 976 SM 1000 Nws
| Kho qhov muag | |
| Center Wavelength | 976nm ua |
| Wavelength kam rau ua | ± 1nm |
| Tso zis zog | 1000 mW |
| Fiber ntau | |
| Fiber Length | >1m |
| Fiber ntau | Hlo 1060 |
| Fiber Connector | FC/APC |
| Hluav taws xob | |
| Kev khiav hauj lwm tam sim no Iop | 1800 mA |
| Threshold Current Ith | 90mA ua |
| Kev khiav hauj lwm Voltage Vop | 2.5V |
| Kub | |
| Kev ntsuas kub | 25 degree |
| Cia Kub | -40 ~ 80 degree |
Paub meej Drawing:
