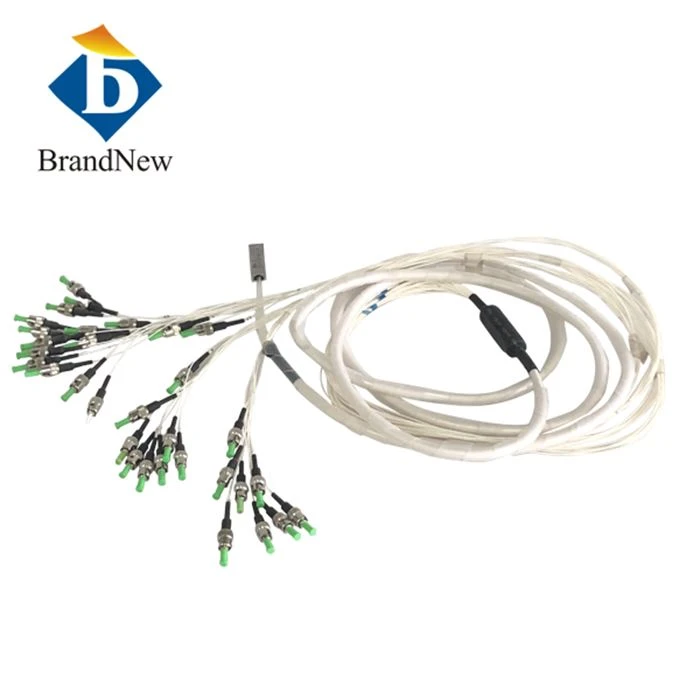

32 Channels Fiber Array rau luam ntawv
saib tag
Nta:
Cov kev xaiv channel: 8,12,16,24,32,48,64,128,151
Wavelength ntawm 200nm mus rau 1800nm
Scalable ntim xav tau los ntawm thawj tus qauv mus rau ntau qhov ntau
CTP laser diode kuj muaj
Photonic Integrated Circuit tau tshaj
Siab Polarization Extinction Ratio (PER)
Qhov tseeb core pitch txoj hauj lwm
Customized solutions muaj
Compact tsim
Daim ntawv thov:
Kev siv tshuaj kho mob
Kev luam ntawv
CTP
Specification:
| Parameter | |
| Tus naj npawb ntawm Channel | 8,12,16,24,32,48,64,128,151 |
| Channel Pitch(um) | 81,127,250,500 |
| Kev Npaj Styles | Ib kab los yog 2 kab |
| Lub wavelength (nm) | 200-1800 |
| Kev xa tawm | > 90% |
| Fiber ntau (m) | 1-3 |
| Core Position yuam kev (um) | +-2 |
| Linear yuam kev (um) | +-2 |
| Hom Fiber | Ib hom, Ntau hom, PM |
| Cladding Diameter ntawm Fiber (um) | 50, 80, 125 |
| Numerical Aperture | 0.12 |
| Txuas | Liab qab Ceramic Ferrules |
Daim duab loj:
