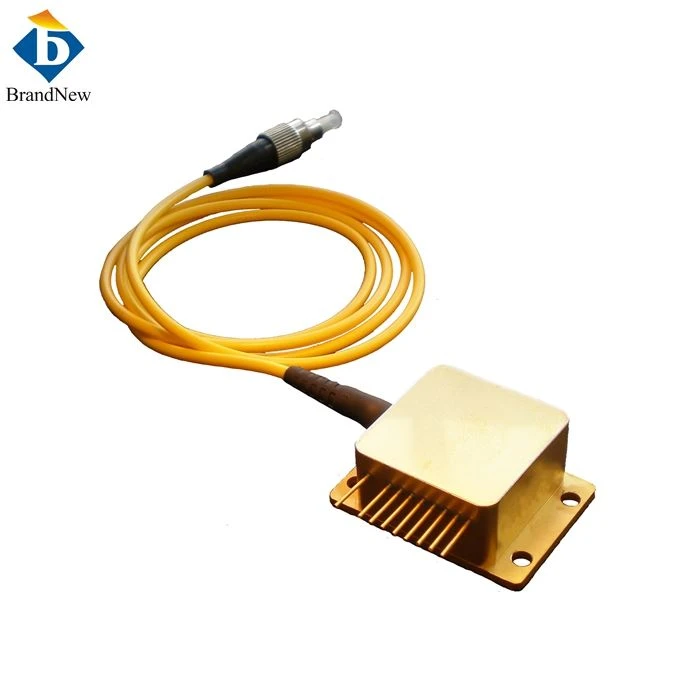

6W 808nm HHL Fiber Module Diode Laser
Product Description
HHL lossis High Heat Load tej pob khoom yog cov txheej txheem loj tshaj plaws laser diode pob khoom muaj. Lawv yog tsim los rau siab zog diode laser daim ntaub ntawv, thiab feem ntau muaj 9 pins. Cov khoom siv hauv paus tuaj yeem ua ntau yam: kovar, CuW, lossis CuMo.
Nta:
Txog li 6W CW tso zis hluav taws xob los ntawm 100 μm core fiber
Internal thermistor, TEC, photodiode
High Quality, Reliability, & Performance
Daim ntawv thov:
Kev tiv thaiv
Laser Marking
Duab
Kev Kho Mob/Dental
Laser Zaub
Solid State Pumping
Daim ntawv Spec
Yam khoom no: FC808DL6
| Kho qhov muag | |
| Center Wavelength | 808nm ua |
| Wavelength kam rau ua | ± 10nm |
| Tso zis zog | 6W |
| Fiber ntau | |
| Fiber tub ntxhais | 100um(-0,+6) |
| Fiber Length | 1m |
| Fiber ntau aperture | 0.22 NOS |
| Fiber Connector | FC/SMA905 |
| Hluav taws xob | |
| Kev khiav hauj lwm tam sim no Iop | 10A |
| Threshold Current Ith | 2A |
| Ua haujlwm Voltage Vop | 2.3V |
| PD | Bulit -in |
| TEC Tam sim no / Voltage | 6A/9.8V |
| Thermistor | 10K |
| Kub | |
| Ua haujlwm kub | 15-35 ° C |
| Cia Kub | -20 ~ 70 degree |
Qhov ntev
![XT}CZ%EC6`0OI9[BL5G6]YM](/Content/uploads/202098745/2020062815413910dad352437f41ba84d2c48d210c8d74.png "product-1-1")
