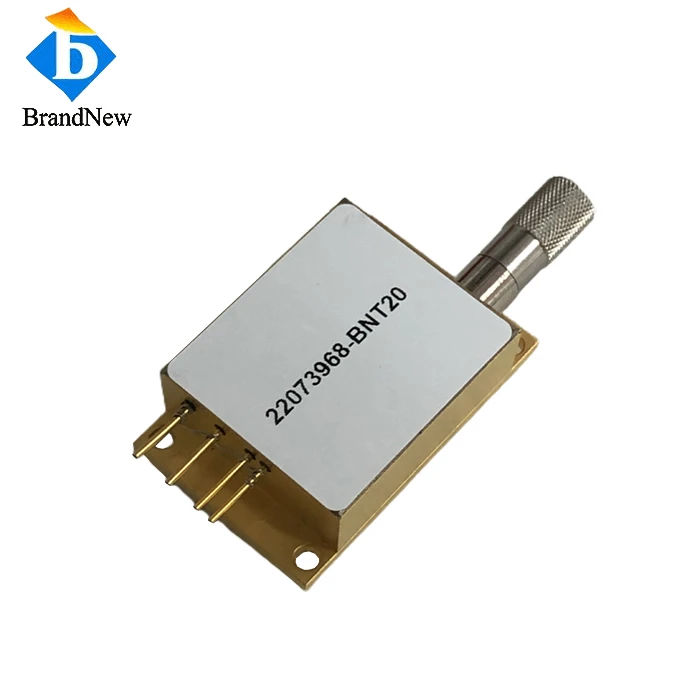

30W 1550nm Fiber Coupled Laser Diode
Cov lasers no yog lub zog siab thiab multimode, nrog rau tuaj nyob rau hauv ntau lub wavelengths. Lawv kuj ua tau zoo heev thiab muab tus qauv qis tus nqi mount. Cov ntawv thov feem ntau suav nrog qhov chaw sib txuas lus pub dawb, kev kho mob, tub rog, lossis aerospace, kev lag luam, LIDAR, thiab nrog DPSS twj lasers.
Ntsiab nta
High Dynamic Power Range
Multimode
High tso zis: 30W
Custom Packaging Muaj
Kev cai Wavelengths muaj
Specification:
Yam khoom no: FC1550CB30
| Kho qhov muag | |
|
Center Wavelength |
1550 ± 10nm |
|
Tso zis zog |
30W |
| Ua hauj lwm hom | CW |
|
Fiber ntau |
|
|
Fiber tub ntxhais |
400 ua |
|
Fiber ntau aperture |
0.22 NAS |
|
Fiber Length |
2.5m / 2.5mm Jacket |
|
Fiber Connector |
SMA905 |
|
Hluav taws xob |
|
| Threshold Current Ith | 1.5A |
|
Kev khiav hauj lwm tam sim no Iop |
10A |
|
Ua haujlwm Voltage Vop |
22V |
|
Kub |
|
|
Test Temp. |
25 degree |
|
Cia Temp. |
-30-70 degree |
Daim duab:
