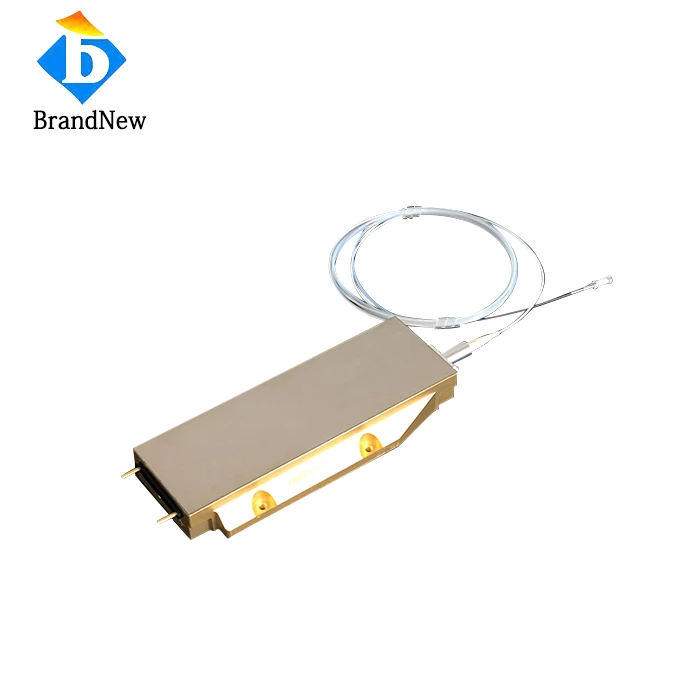

888nm 350W Fiber Coupled Diode Laser Wavelength Stabilized

888nm 350W Fiber Coupled Diode Laser Wavelength Stabilized





Nta:

• Nws lub wavelength kub drift tus nqi yuav tsawg li 0.01-0.02nm/degree, uas ua kom lub sij hawm ntev stability ntawm cov zis spectrum thiab ua tiav lub zog sib koom ua ke.

• Nyob rau tib lub sijhawm, cov tub ntxhais txoj kab uas hla ntawm fiber ntau tuaj yeem ncav cuag 1.7mm lossis ntau dua, txhawb nqa lub zog loj.

• Nws txo cov thermal crosstalk thiab lav kev ua haujlwm ruaj khov rau lub sijhawm ntev.

• The electro-optical efficiency of semiconductor lasers is usually >40%, uas txo lub zog poob thiab ua rau lub neej ua haujlwm ntev.

• Txhawb nqa wavelength zoo -tuning (xws li ± 10nm ntau), fiber ntau ntev thiab core inch customization kom tau raws li cov kev cai tshwj xeeb.



Daim ntawv thov:

• Kev ua lag luam

• Laser Pumping

• Kev Tshawb Fawb thiab Kev Kho Mob

• Kho mob

• Kev paub thiab Detectio

Daim ntawv hnub

Yam khoom no: FC888WS350

Khoom npe: 888nm 350W Fiber Coupled Diode Laser

Tsim:

Lub 888nm 350W stabilized fiber ntau -coupled laser combines industrial- qib kev ntseeg tau thiab precision tswj los ntawm kev sib koom ua ke ntawm lub zog siab, wavelength stabilization technology thiab txuag hluav taws xob tsim. Nws cov txiaj ntsig tseem ceeb yog cov khoom siv hluav taws xob siab zog, kev hloov pauv ib puag ncig thiab ntau yam -kev qhuab qhia kev sib raug zoo, uas tuaj yeem txuas ntxiv mus rau kev txhim kho lub zog tshiab (xws li laser fusion) thiab kev paub txog kev txawj ntse yav tom ntej.

888nm, 350W Fiber-Coupled Laser Module FC888WS350 yog ib qho 888nm, 350W fiber ntau-coupled laser module nrog cov kev khiav hauj lwm tam sim no ntawm 13A thiab kev khiav hauj lwm voltage ntawm 65V. Nws muaj fiber ntau txoj kab uas hla ntawm 200 μm thiab tus lej aperture ntawm 0.22. Lub module muaj qhov nruab nrab wavelength ntau ntawm 887 nm txog 889 nm nrog qhov dav spectral ntawm 1nm (FWHM). Kev khiav hauj lwm kub yog 20℃mus rau 30℃thiab cia kub ntau yog -20℃mus rau 80 degree. Module qhov ntev yog

Kev tuav thiab kev ua haujlwm ntawm Laser Diodes
Laser diodes tsis tshua muaj kev cuam tshuam rau kev puas tsuaj los ntawm electrostatic paug thiab kub siab tshaj lawv qhov kev nyab xeeb kev khiav hauj lwm ntau yam. Nws raug nquahu kom cov neeg siv ceev faj thiab ua qhov tsim nyog ESD ntsuas kev nyab xeeb thaum tuav kom tsis txhob muaj kev puas tsuaj rau lub laser. Kev ntsuas kom raug qis- lub suab nrov laser diode tam sim no qhov chaw, cov khoom siv hluav taws xob tsis tshua muaj hluav taws xob / cov cua sov, thiab cov tswj ntsuas kub yuav tsum tau siv los xyuas kom muaj kev ua tau zoo thiab kev ntseeg siab ntawm lub cuab yeej.
