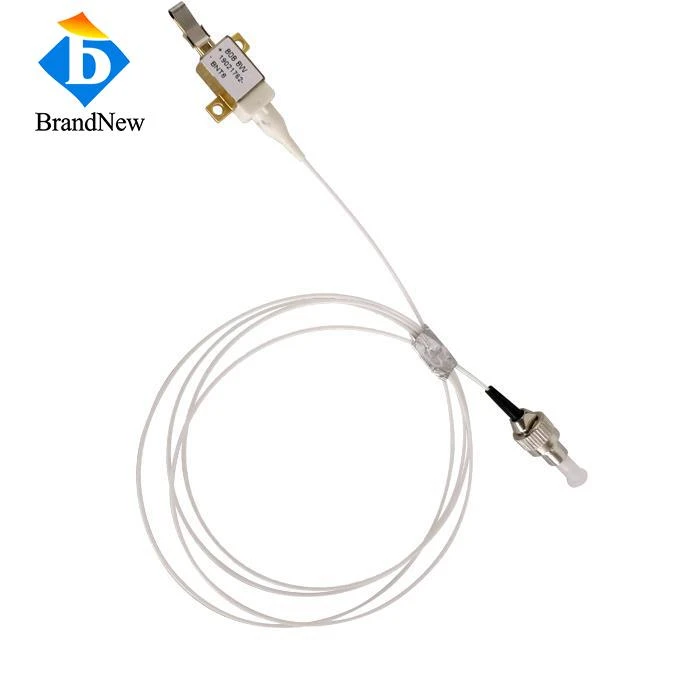

High coupling efficiency 915nm diode laser 10W
Qhov zoo
1. Lub neej ntev
2.High Coupling Efficiency
3. Lub Hwj chim siab
4.Compact Loj
Daim ntawv thov
1. Pumping
2. Kev siv tshuaj kho mob
3.TEC Peltier
4.Fiber Detector
Specifications
|
Yam khoom no: FC915DL10 |
|
|
Khoom npe: 10W 915nm High coupling efficiency fiber ntau txuas diode |
|
|
Kho qhov muag |
|
|
Center Wavelength λ |
915nm ua |
|
Wavelength kam rau ua |
± 10nm |
|
Tso zis zog |
30W |
|
Spectral Width FWM |
7nm ua |
|
>90% zog |
0.15 NAS |
|
Slope Efficiency |
2.7W/A |
|
Fiber ntau |
|
|
Fiber Khoov Radius |
30 hli |
|
Fiber Core/Cladding/Buffer Diameter |
105um / 125um / 250um |
|
Fiber ntau aperture |
{{0}}.15NA lossis 0.22NA |
|
Fiber Length |
1m |
|
Fiber Connector |
SMA905 |
|
Hluav taws xob |
|
|
Kev khiav hauj lwm tam sim no Iop |
11.5A |
|
Threshold Current Ith |
0.9A |
|
Ua haujlwm Voltage Vop |
5.4V |
|
Fais fab Hloov Efficiency |
47% |
|
Kub |
|
|
Kev khiav hauj lwm kub (tsis yog condensing) |
15-35 ° C |
|
Storage Temperature (Non-Condensing) |
-20-55 degree |
|
Wavelength Temperature Coefficient
|
-0.3nm/degree |
FAQ
Q1. Hais txog MOQ.
MOQ. yog 1 teeb rau peb cov khoom uas twb muaj lawm.
Q2. Yuav ua li cas txog kev xa khoom?
Peb tuaj yeem muab kev pabcuam rau lub qhov rooj los ntawm huab cua lossis hiav txwv, tsuas yog nyob ntawm koj qhov kev thov tiag tiag. Xws li DHL, UPS, TNT, FEDEX.
Q3. Peb lub sijhawm warranty ntev npaum li cas?
Peb muab koj 1 xyoo warranty lub sijhawm, hauv 1 xyoos, tag nrho cov kev pabcuam dawb.
