Kev ua haujlwm siab 20W 915nm Fiber txuas nrog ntau lub emitter diode laser rau kev siv thiab IR teeb pom kev zoo
Nta:
High coupling efficiency;
High brightness;
Txhim khu kev qha Au/Sn bonding;
Compact Size;
Daim ntawv thov:
Fiber laser twj;
Kev kho mob/Lub neej thiab kev noj qab haus huv sciences;
Kev kho hniav;
Qhov no diode laser module tau tsim rau fiber ntau laser siv daim ntaub ntawv thiab nyob rau hauv kev kho mob los yog cov ntaub ntawv ua Nws muaj txog li 20W laser zog los ntawm ib tug 105µm fiber ntau rau hauv 0.22 tus lej aperture nrog xaiv wavelength stabilization los ntawm 915nm. Lwm txoj haujlwm tuaj yeem ntxiv xws li liab aiming beam.
![]APYXV5RAL3QC7VD_%T1TCG](/Content/upload/201998745/201905101441472508178.png)
![OVLZ~{@F1]U{06P]WAO1`[Y](/Content/upload/201998745/201905101441588974834.png)
1.Cov ntaub ntawv ntawm 25 ° C kub, tshwj tsis yog hais tias lwm yam.
3.Ib qhov chaw uas tsis yog-condensing yuav tsum tau khaws cia thiab ua haujlwm rau cov ntaub ntawv saum toj no.
4.Fiber ntev tuaj yeem teev los ntawm cov neeg siv khoom.
5.Yog tias muaj lwm yam kev xav tau, thov hu rau peb.

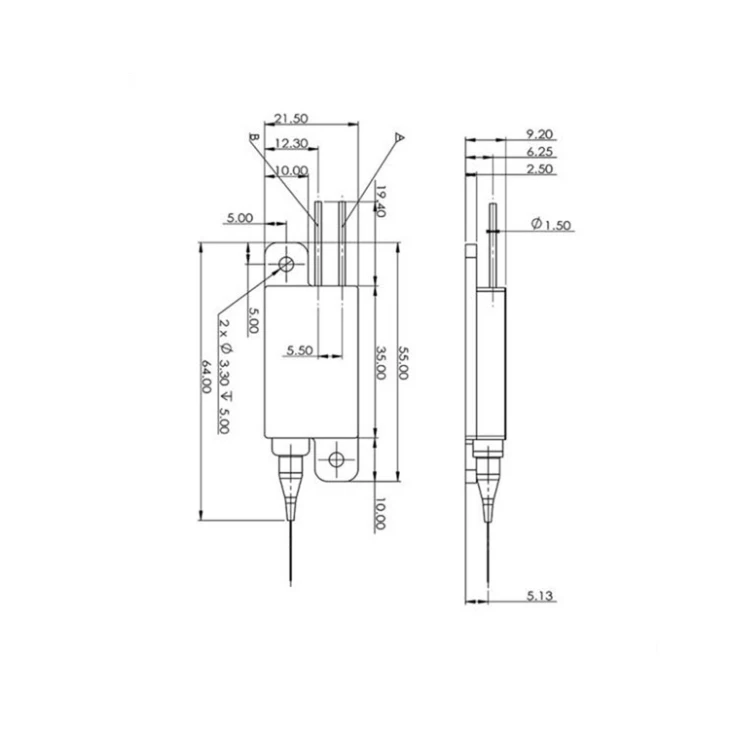

Daim duab:
 |  |
