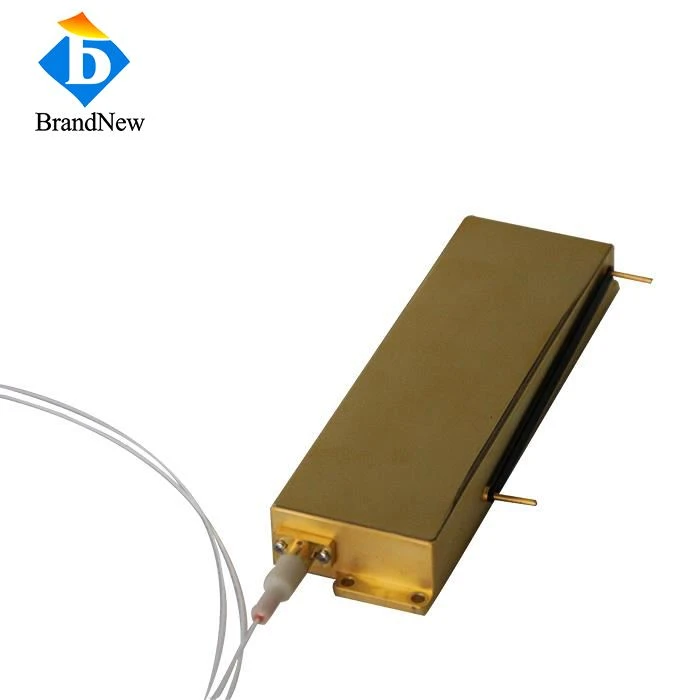

360W 915nm Fiber Coupled Diode Laser
Fiber-coupled lasers feem ntau siv laser diodes ua twj tso kua mis. Hom semiconductor laser no tsim lub teeb laser los ntawm hluav taws xob lub zog excitation. Nws yog qhov me me thiab muaj txiaj ntsig zoo, ua rau nws tsim nyog siv los ua lub twj tso kua mis. Tsis tas li ntawd, fiber ntau -coupled lasers kuj tuaj yeem xa lub teeb lub zog mus rau qhov nruab nrab los ntawm cov fibers optical lossis optical lens pawg, ntxiv kev txhim kho kev ua haujlwm thiab kev tswj hwm ntawm laser emission.
Nta:
High brightness
Kev ntseeg siab
lub neej: tshaj 10000hours
Nqi zoo pob
Simplified thermal tswj
Ib xyoo lav rau kev ua haujlwm thiab cov ntaub ntawv tom qab tau txais cov khoom.
Daim ntawv thov:
Specification:
Yam khoom no: FC915DL360
| Kho qhov muag | Tus nqi |
| Center Wavelength | 915nm ua |
| Wavelength kam rau ua | ± 3nm |
| Tso zis zog | 360W |
| Spectral Width FWM | 6nm ua |
| Hluav taws xob | |
| Kev khiav hauj lwm tam sim no Iop | 26A |
| Threshold Current Ith | 1.1A |
| Ua haujlwm Voltage Vop | 31.5V |
| Kub | |
| Ua haujlwm kub (Tsis yog-Condensing) | 15-35 ° C |
| Cia Kub (Tsis yog -Condensing) | -20 ~ 55 degree |
| Wavelength Temp. Coefficient | 0.35nm / degree |
Daim duab loj:
![4)5V)7]A]K9G{LVJ~PNXJE5](/Content/uploads/202098745/2020081810462572ac5c1fa5f146dfabb61cac12a3eff7.png "product-1-1")
Cim npe nrov: 360w 915nm fiber ntau txuas diode laser lwm tus neeg Suav teb, koom xwm, lag luam wholesale, ua nyob rau hauv Suav teb
