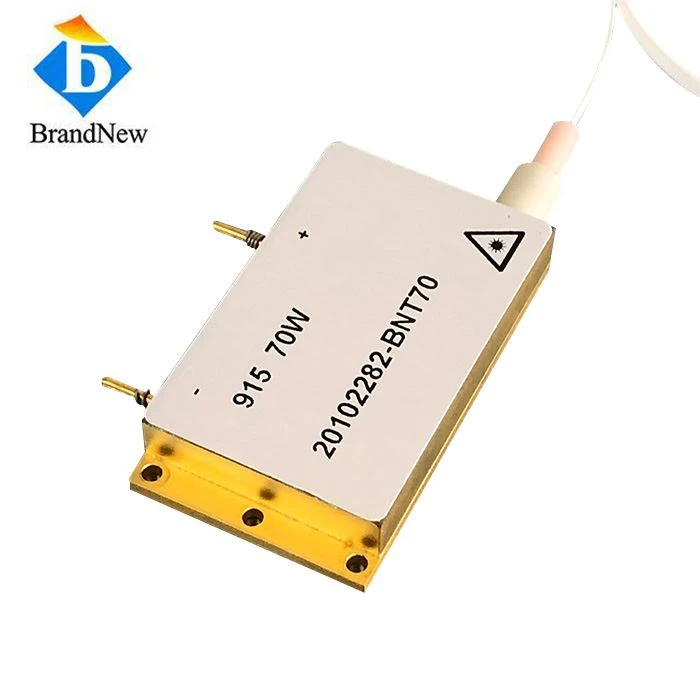

70W Nruam Wave Medical Fiber Coupled Diode Laser
Nta:
- High Coupling Efficiency
- High Stability thiab kev ntseeg siab
- Lub neej ua haujlwm ntev
- Kev xa khoom sai
Daim ntawv thov:
- Kev phais laser: kom meej txiav thiab coagulation ntawm cov ntaub so ntswg, txo los ntshav thiab raug mob.
- Kev kho ntawm daim tawv nqaij: xws li tshem tawm cov plaub hau, tshem tawm blemish, daim tawv nqaij rejuvenation thiab kho pob txuv.
- Kev kho lub cev: rau kev tiv thaiv- mob, mob nyem thiab txhawb kev kho cov ntaub so ntswg.
- Kev kho hniav: xws li cov hniav ntxuav hniav dawb, phais cov pos hniav, thiab lwm yam.
Optical fiber ntau coupling yog siv nyob rau hauv ntau yam teb, nrog sib txawv zog thiab wavelength. Daim ntawv thov teb kuj tseem yuav txawv raws li lub wavelength thiab lub zog . 70W 915nm Fiber Coupled Diode Laser Nrog CW ua haujlwm hom, uaually siv hauv kev kho mob daim ntawv thov, Printing Systems.
Daim ntawv qhia
Yam khoom no: FC915DL70
Yam khoom: CW 70W Kev Kho Mob Siv Fiber Coupled Diode Laser
| Kho qhov muag | |
| Center Wavelength | 915 ± 10nm |
| Tso zis zog | 70W |
| Ua hauj lwm hom | CW |
| Spectral Width FWM | 4nm ua |
| Fiber ntau | |
| Fiber tub ntxhais | 105 ua |
| Fiber ntau aperture | 0.22 NOS |
| Fiber Length | 1-2M |
| Fiber Connector | SMA905 |
| Hluav taws xob | |
| Kev khiav hauj lwm tam sim no Iop | 12.5A |
| Threshold Current Ith | 0.9A |
| Ua haujlwm Voltage Vop | 15V |
| Kub | |
| Ua haujlwm kub | 15-35 ° C |
| Cia Kub | -30-70 degree |
| Wavelength Temp. Coefficient | 0.3nm / degree |
Daim duab:
Vim li cas thiaj xaiv peb cov fiber ntau -coupled lasers?
Cov zis hluav taws xob siab: lub zog muaj peev xwm npog ntau yam kom tau raws li ntau yam kev siv.
Kev tswj xyuas meej: fiber ntau-coupled tsim kom muaj zog laser xa mus thiab ua haujlwm yooj yim.
ruaj khov thiab txhim khu kev qha: advanced diode laser tshuab, kev ua haujlwm ruaj khov thiab lub neej ntev.
Ntau- daim ntawv thov ua haujlwm: tsim nyog rau kev phais kho mob, kev ua cov khoom siv, kev tshawb fawb tshawb fawb, kev tu tawv nqaij kom zoo nkauj thiab lwm yam haujlwm.
Peb cov khoom zoo:
Kev kho mob -qib precision: Muab kev nyab xeeb thiab ua haujlwm laser zog rau kev phais thiab kev kho mob.
Industrial-qib durability: ua tau raws li qhov xav tau ntawm kev ua haujlwm hnyav.
Kev tshawb fawb- qib kev ua tau zoo: Muab siab -precision, tunable laser qhov chaw rau lub chaw soj nstuam.
