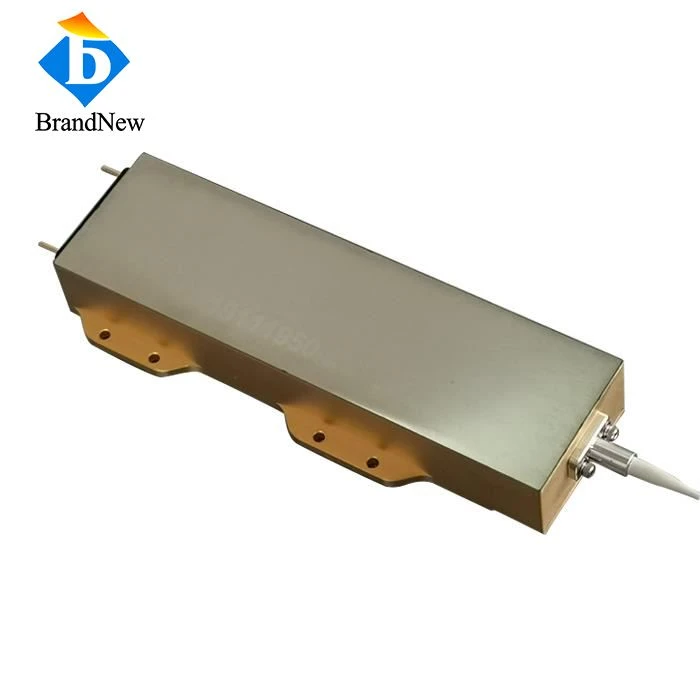

200W 940nm Fiber Coupled Diode Laser Module
Siab zog diode laser module xaiv raws li hauv qab no:
450nm txog 200W
793nm txog 140W
808nm txog 180W
915nm txog 750W
940nm txog 200W
976nm mus rau 320W
Nta:
Lub neej ntev
High Coupling Efficiency
Siab zog
Parallel seam sealing
Compact Size
Cov ntawv thov tseem ceeb:
Tso dej
Kho mob
Kev ua cov khoom siv
IR Lub Teeb Pom Kev
Fiber coupled laser diodes yog siv nyob rau hauv ntau yam kev lag luam kev siv, xws li laser txiav, laser vuam, thiab laser npav. Lasers tuaj yeem siv los txiav cov ntaub ntawv, vuam hlau, thiab kos cov khoom nrog cov cim mus tas li. Lawv kuj tseem siv tau rau ntau yam kev lag luam, xws li luam ntawv, ntim khoom, thiab kev tsim khoom.
Specification ntawm cov khoom kub
Yam khoom: FC940LD200
|
Kho qhov muag |
|
|
Center Wavelength |
940nm ua |
|
Wavelength kam rau ua |
± 10nm |
|
Tso zis zog |
200W |
|
Spectral Width FWM |
5nm ua |
|
Slope Efficiency |
15W/A |
|
Fiber ntau |
|
|
Fiber Core Diameter |
200 ua |
|
Fiber ntau aperture |
0.22 NOS |
|
Fiber Length |
1.5m |
|
Fiber Connector |
SMA905 los yog Bare |
|
Hluav taws xob |
|
|
Kev khiav hauj lwm tam sim no Iop |
13A |
|
Threshold Current Ith |
0.6A |
|
Ua haujlwm Voltage Vop |
34V |
|
Kub |
|
|
Kev khiav hauj lwm Temp. |
15-55 ° C |
|
Cia Temp. |
-20-70 degree |
Kev kos duab
