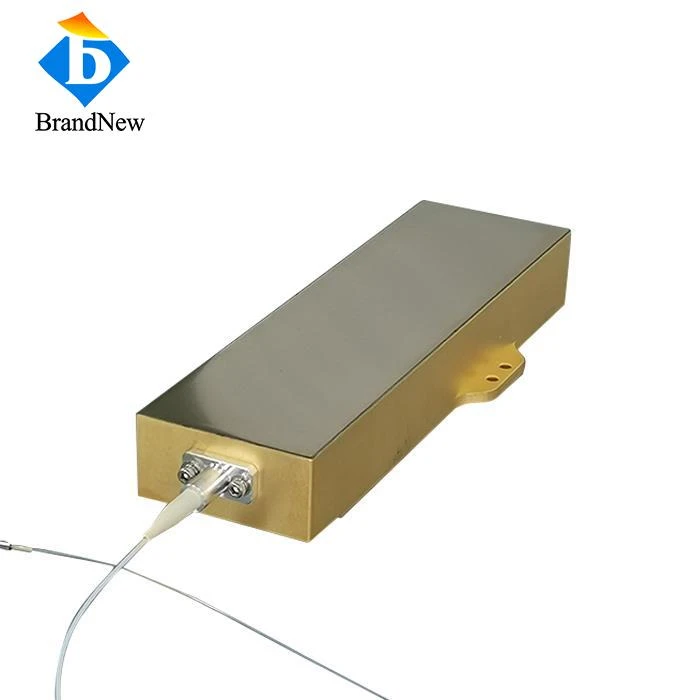

130W 976nm Fiber Coupled Diode Laser
Product Description
Lub zog loj laser diodes no muaj txog li 130 Watts ntawm CW optical tso zis zog rau hauv 105 micrometer fiber pigtail. Cov khoom siv no yog ua raws li kev ntseeg siab ntau tus qauv emitter tsim.
Kev siv fiber ntau txuas nrog laser diodes rau cov khoom siv muaj ntau qhov zoo dua lwm hom lasers. Ua ntej, lub zog tso zis ntawm cov diodes tuaj yeem tswj tau yooj yim thiab hloov kho kom tau raws li cov ntawv thov sib txawv. Qhov thib ob, qhov loj thiab tsim ntawm fiber ntau connector vaj tse ua rau lawv ib tug heev compact thiab npaum kev daws teeb meem, uas kuj ua rau lawv zoo tagnrho rau siv nyob rau hauv cov cheeb tsam uas tsis muaj chaw.
High brightness laser rau kev kho mob, twj tso kua mis thiab cov ntaub ntawv ua cov ntaub ntawv
SMA905 los yog Bare connector rau optical fibers
Compact qhov ntev
Passively txias
Daim ntawv qhia:
Yam khoom no: FC976DL130
| Kho qhov muag | Tus nqi |
| Center Wavelength | 976 ± 10nm |
| Tso zis zog | 130W |
| Ua hauj lwm hom | CW |
| Spectral Width FWM | 4nm ua |
| Slope Efficiency | 10W/A |
| Fiber ntau | |
| Fiber Khoov Radius | >40 mm |
| Fiber Length / Fiber Jacket Diameter | 1.5m / 0.9 hli |
| Fiber Core Diameter | 105um ± 1.5um |
| Fiber ntau aperture | 0.22 NAS |
| Hluav taws xob | |
| Kev khiav hauj lwm tam sim no Iop | 12A |
| Threshold Current Ith | 0.5A |
| Ua haujlwm Voltage Vop | 25.5V |
| Fais fab Hloov Efficiency | ~45% |
| Kub | |
| Kev khiav hauj lwm Temp. | 15-55 ° C |
| Wave Temp. Coefficient | 0.3nm/degree |
Pob loj:
![)~KHQV@}3%P]WN@U(GODIQY](/Content/upload/201998745/201908201439043384837.png "product-1-1")
