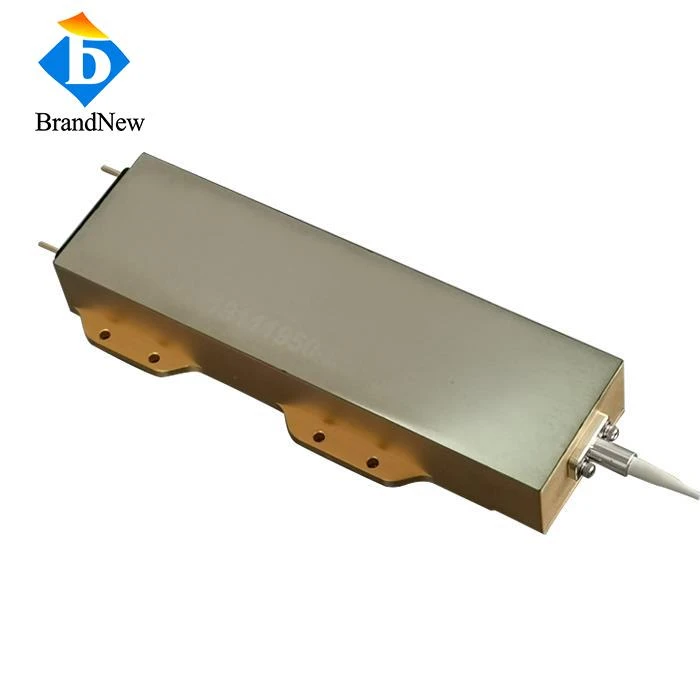

CW 270W 915nm Fiber Coupled Laser Diode
Txheej txheem cej luam
Main Feature:
Lub zog siab tshaj plaws ntawm 915nm yog 750W
Fiber Numerical Aperture (>90% Fais fab tuag) 0.16NA
Customized laser modules thiab fibers ntawm kev thov
Lub teeb tawm ntawm cov fiber ntau muaj ib ncig thiab tsis sib xws siv profile.
Daim ntawv thov:
Lub teeb qhov chaw rau laser vuam tshuab, laser txiav tshuab, laser siv tshuab ...
Fiber coupled laser diodes yog siv nyob rau hauv ntau yam kev lag luam kev siv, xws li laser txiav, laser vuam, thiab laser npav. Lasers tuaj yeem siv los txiav cov ntaub ntawv, vuam hlau, thiab kos cov khoom nrog cov cim mus tas li. Lawv kuj tseem siv tau rau ntau yam kev lag luam, xws li luam ntawv, ntim khoom, thiab kev tsim khoom.
Specification
Yam khoom no: FC915DL270
Khoom npe: 270W 915nm Fiber Coupled Diode Laser
| Kho qhov muag | |
| Center Wavelength | 915nm ua |
| Wavelength kam rau ua | ± 10nm |
| Tso zis zog | 270W |
| Fiber ntau | |
| Fiber tub ntxhais | 200 ua |
| Fiber Numerical Aperture (>90% zog) | 0.16 NOS |
| Fiber Length | 1.5~2m |
| Fiber Connector | Qab kawg |
| Hluav taws xob | |
| Kev khiav hauj lwm tam sim no | 18~22A |
| Hnub Nyoog Tam Sim No | 1.1A |
| Kev khiav hauj lwm voltage | 29~32V |
| Kub | |
| Kev khiav hauj lwm Temp. | 15-45 ° C |
| Wave Temp. Coefficient | 0.35nm / degree |
Kev kos duab
FAQ:
Yuav ua li cas mus ua ib qho kev txiav txim?
1. Tiv tauj peb kom paub meej ntxiv los ntawm email
2. Peb xa PI rau koj rau kev them nyiaj, lub sijhawm them nyiaj yog T / T lossis Western Union
3. Thaum them nyiaj tiav, peb yuav npaj ntau lawm
4. Lub sij hawm xa tuaj yog 1-2 lub lis piam nyob ntawm qhov kev txiav txim sib txawv qty thiab thov.
5. Tom qab xa khoom, peb yuav xa koj DHL UPS FedEx TNT taug qab tsis muaj.
Koj puas tuaj yeem ua OEM (tsim thiab tsim cov lasers rau cov neeg siv khoom)?
Yog lawm, peb muaj cov kws tshaj lij R & D pab pawg suav nrog software, kho vajtse, hluav taws xob thiab cov kws tsim qauv 3D thiab muaj peev xwm txaus los tsim cov lasers tag nrho raws li cov neeg siv khoom xav tau.
