10W 1064nm Detachable Fiber Coupling Laser Diode Nrog Liab Aiming Beam
Txheej txheem cej luam:
Fiber bragg grating stabilization, wavelength xaiv muaj
Cov qauv tsim muaj zog rau kev ua haujlwm hauv ib puag ncig hnyav
Compact qauv, zoo tshav kub dissipation kev ua tau zooIdeal rau biomedical, Industrial, los yog Telecommunication
Optical sensor systemsParallel sealing txheej txheem, anti condensation tsim
Daim ntawv thov:
Fiber Laser Pumping
Poob nyiaj them rau fiber ntau optical txuas thiab hloov
Kev siv tshuaj kho mob
Txoj kev nrhiav thiab qhia
Daim ntawv qhia
Yam Tsis Tau: FC1064DL10

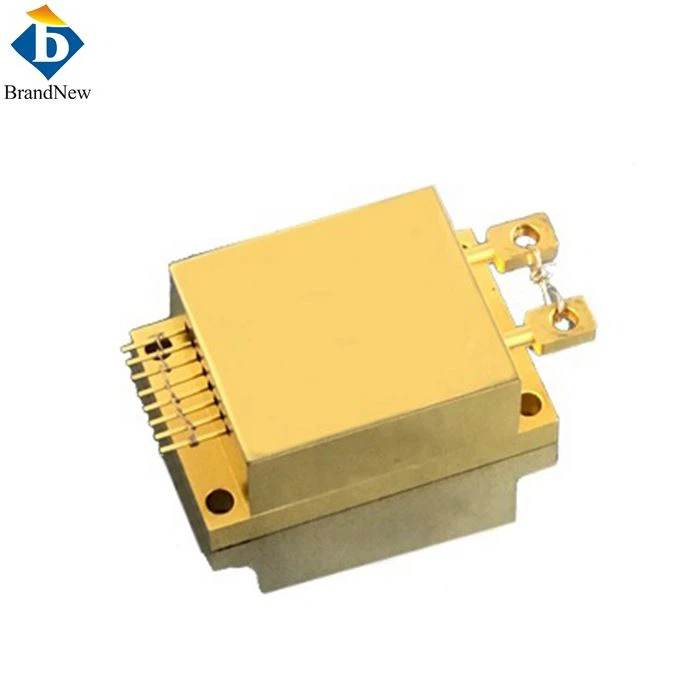

Khoom npe: 10W Detachable Fiber Coupling Diode Laser
| Kho qhov muag | |
| Center Wavelength λ | 1064nm ua |
| Wavelength kam rau ua | ± 20nm |
| Tso zis zog | 10W |
| Spectral Width FWM | 6nm ua |
| Hluav taws xob | |
| Kev khiav hauj lwm tam sim no Iop | 9A |
| Threshold Current Ith | 0.7A |
| Ua haujlwm Voltage Vop | 3.5V |
| Fais fab Hloov Efficiency | 30 feem pua |
| Fiber ntau | |
| Fiber Khoov Radius | >60 hli |
| Fiber Core Diameter | 200 ua |
| Fiber ntau aperture | 0.22 NAS |
| Fiber Length | 1M |
| Fiber Connector | SMA905 |
| Kub | |
| Ua haujlwm kub | 15-35 ° C |
| Cia Kub | -20-70 degree |
| Wavelength Temperature Coefficient | -0.3nm/degree |
Daim duab:
