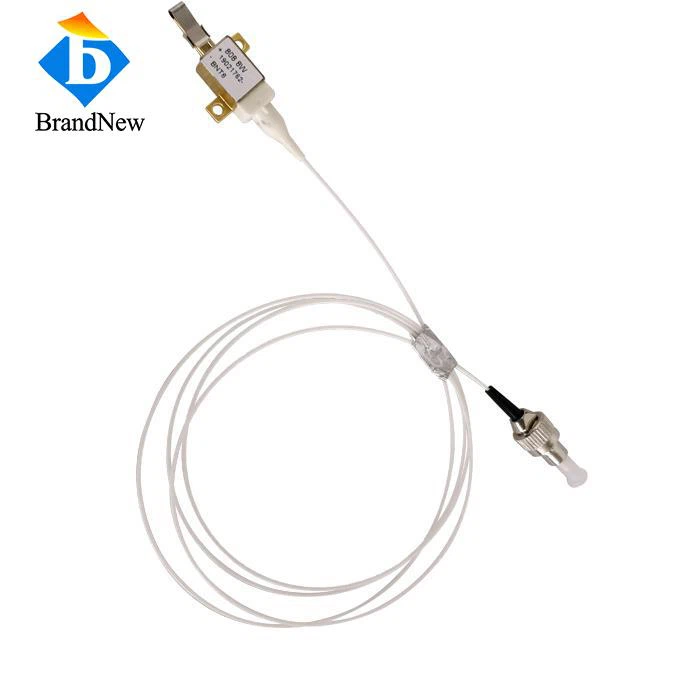

1W / 2W 830nm fiber ntau txuas diode laser nrog Jenoptik laser chips rau CTP luam ntawv
Muaj nrog cov qauv tsim qauv, 830nm fiber ntau txuas nrog laser diode ua rau lub zog tso zis siab thiab ua haujlwm siab sib txuas hauv kev lag luam. Nrog lub zog tso zis siab ntawm 2W, 830nm infrared laser diode muab cov khau siab heev thiab CW infrared laser teeb qhov chaw hauv laser siv qhov chaw, kev kho mob, khoom siv thiab IR illumination thiab lwm yam.
Customized version thiab tshuab tsim rau cov fibers sib txawv muaj.
Featured duab:
Lub wavelength 830nm
Cov zis hluav taws xob 1W lossis 2W
Fiber tub ntxhais txoj kab uas hla 50μm
Fiber Numerical Aperture 0.14NA
High coupling efficiency, ruaj khov kev ua tau zoo, thiab ua haujlwm ntev lub neej
Standard technical parameters:
Kho qhov muag
Nruab nrab wavelength: 830nm
Lub wavelength kam rau ua: ± 10nm
Cov zis hluav taws xob: 2W
Spectral Width FWHM: 6nm
TYP NA (90% Zog): 0.12NA
Slope Efficiency: ≥0.95W / A
Fiber ntau
Fiber ntau Aperture: 0.14NA
Fiber Core/Cladding/Buffer Diameter: 50/125/250um
Fiber Length: 60 cm
Khoov Radius:> 30mm
Fiber connector: ST / SMA905 / liab qab
Hluav taws xob
Kev khiav hauj lwm tam sim no Iop: 2.3A
Qhov ntsuas tam sim no: 0.25A
Kev khiav hauj lwm Voltage: 2.0V
Fais fab Hloov Ua Haujlwm: 43%
Kub
Ua haujlwm kub: 15 ~ 35 ℃
Cia kub: -20-50 ℃
Lub wavelength kub coefficient: ~ 0.28nm / ℃
Pin Configuration:
Brandnew Technology muab cov khoom zoo nrog tus nqi tsim nyog
Pls kindly hu rau peb kom paub meej ntxiv.
