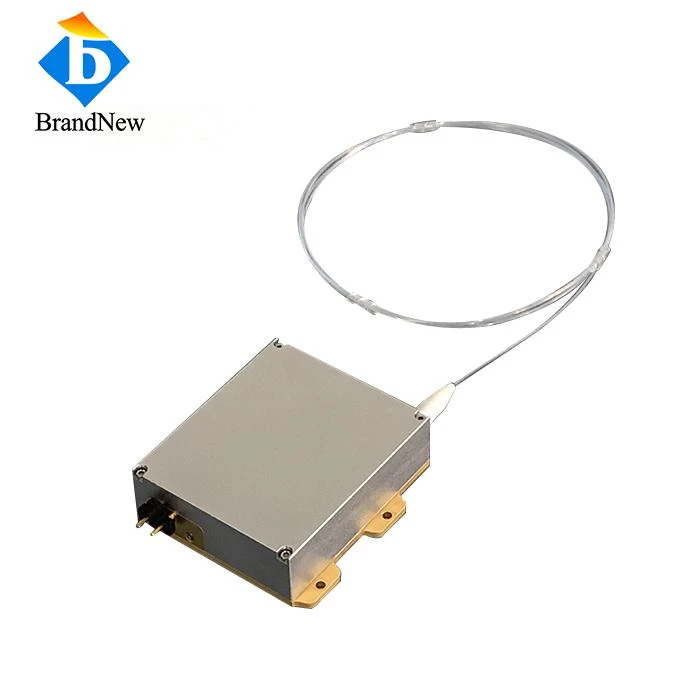

45W 976nm Fiber Coupling Laser Diodes VBG Rau Optical Test Instruments
Nta:
- Fiber Bragg grating stabilization
- Uniform intensity distribution
- Yooj yim, ua tau zoo optical system
- Me me thiab lub teeb yuag
Daim ntawv thov:
- Fiber Pumping Application
- Optical test instruments
- Biomedical imaging systems
- Txoj kev nrhiav thiab qhia
- Kev ua cov khoom siv
45W 976nm Fiber Coupling Laser Diodes nrog stabilized wavelength rau cov khoom ua. Lub xauv nyob rau hauv tag nrho cov kev khiav hauj lwm tam sim no ua kom ntseeg tau tias qhov nruab nrab wavelength ntawm lub semiconductor laser twj tso kua mis qhov chaw tseem tsis hloov thaum lub sij hawm lub ntaus ntawv pib thiab modulation txheej txheem, thiab cov khoom tsis cuam tshuam los ntawm ambient kub, uas coj ntau yam zoo rau daim ntawv thov.
Dhau li ntawm lub zog no, peb kuj muab 7W, 9W, 20W, 27W, 35W, 65W, 180W thiab lwm yam. Kev tshuaj xyuas thiab hlawv- nyob rau hauv cov txheej txheem hauv txhua qhov tuaj mus rau qhov tshwm sim los lav txhua yam khoom nrog kev ntseeg siab, ruaj khov thiab lub neej ntev.
Daim ntawv qhia
Yam Tsis Tau: FC976DL45
Yam khoom: 976nm Fiber Coupling Laser Diodes VBG
|
Kho qhov muag |
|
|
Center Wavelength |
976nm ua |
| Wavelength kam rau ua | ± 0.5nm |
|
Tso zis zog |
45W |
|
Fiber ntau |
|
| Fiber Core Diameter |
105 ua |
| Fiber ntau aperture | 0.22 NOS |
|
Fiber Length |
1m |
|
Fiber Connector |
SMA905 |
|
Hluav taws xob |
|
|
Kev khiav hauj lwm tam sim no Iop |
12A |
|
Threshold Current Ith |
0.7A |
|
Ua haujlwm Voltage Vop |
9V |
|
Kub |
|
|
Ua haujlwm kub |
15-55 ° C |
|
Cia Kub |
-30-70 degree |
| Wavelength Temperature Coefficient | 0.01nm / degree |
Daim duab:
Nco tseg:
1. Siv cov khoom siv hluav taws xob tas li. Tsis txhob surge tam sim no
2. Laser diode yuav tsum ua haujlwm nrog cua txias zoo
3. zam qhov muag lossis tawv nqaij raug hluav taws xob ncaj qha lossis tawg mus
4. ESD yuav tsum tau ceev faj
Volume Bragg grating (VBG) stabilized diode laser. FAC-fast axis colli- mator.
