15W 976nm Fiber Coupled Optic Laser Diode Rau Roman Spectroscopy
Qhov zoo:
Compact tsim, ruaj khov tso zis zog
High efficiency, yooj yim pob
Superior taum zoo
Tsawg polarization rhiab heev
Daim ntawv thov:
Fiber kev sib txuas lus system
Optical coherence tomography
Kev Tshawb Fawb Txog Kev Tshawb Fawb
Roman spectroscopy
Txheej txheem cej luam:
Ib qho tshiab-teeb tsa 15 Watt 976nm fiber-coupled photodiode yog tam sim no muaj, tsim rau Romance Spectroscopy daim ntaub ntawv. Featuring 200 micron fiber core, 0.22 tus lej aperture fiber ntau, thiab 1 meter fiber ntev nrog SMA905 fiber optic connectors, lub photodiode ua kom zoo meej haum rau koj lub cev thiab kev ua haujlwm tsis sib xws.
Nrog lub zog tso zis ntawm 15 watts thiab qhov nruab nrab wavelength ntawm 976 nm, lub photodiode no ua tau zoo nyob rau hauv Roman spectroscopy cov kev tshawb fawb, muab koj nrog kev ua tau zoo tsis sib xws. Nws 10-pin configuration txhim khu kev sib txuas thiab versatility rau ntau yam kev xav tau kev ua haujlwm.
Peb photodiodes mus ib kauj ruam ntxiv los ntawm kev muab cov yam ntxwv xaiv los txhim kho koj cov kev paub dhau los. Cov yam ntxwv xaiv tau suav nrog kev sib koom ua ke ntawm PD (photodiode) thiab thermistor rau kev saib xyuas lub sijhawm; beam aiming kom meej qhov chaw; tshem tau fiber ntau optics kom yooj yim ntxiv; thiab TEC (thermoelectric txias) rau kev txhim kho kev ruaj ntseg hauv qhov chaw sib txawv.
Tsis tas li ntawd, nws tau nruab nrog fiber ntau Bragg grating stabilization technology thiab wavelength xaiv los xyuas kom meej qhov tseeb thiab ruaj khov ntawm photodiode, muab kev txhawb nqa meej rau koj cov kev tshawb fawb Roman spectroscopy.
Txawm hais tias koj nyob nraum laser vuam, nce kev kho mob kev kuaj mob, ua kev tshawb fawb, los yog ua spectroscopic tsom xam, peb fiber-coupled photodiodes muaj koj them. Muaj kev paub txog kev ua tau zoo thiab kev tsim kho tshiab, nrog txhua yam khoom siv los coj koj qhov project mus rau qib tom ntej.
Daim ntawv qhia
Yam Tsis Tau: FC976DL15
Khoom npe: 976nm Fiber Optic Laser Diode
|
Kho qhov muag |
|
|
Center Wavelength |
976nm ua |
| Wavelength kam rau ua | ± 10nm |
|
Tso zis zog |
15W |
| Ua hauj lwm hom | CW |
|
Fiber ntau |
|
| Fiber Core Diameter |
200 ua |
| Fiber ntau aperture | 0.22 NAS |
|
Fiber Length |
1m |
|
Fiber Connector |
SMA905 |
|
Hluav taws xob |
|
|
Kev khiav hauj lwm tam sim no Iop |
11A |
|
Threshold Current Ith |
1.7A |
|
Ua haujlwm Voltage Vop |
4V |
| TEC | Muaj |
| Aiming Beam | 650 nm / 2 mW |
|
Kub |
|
|
Ua haujlwm kub |
15-55 ° C |
|
Cia Kub |
-30-70 degree |
| Wavelength Temperature Coefficient | 0.3nm/degree |

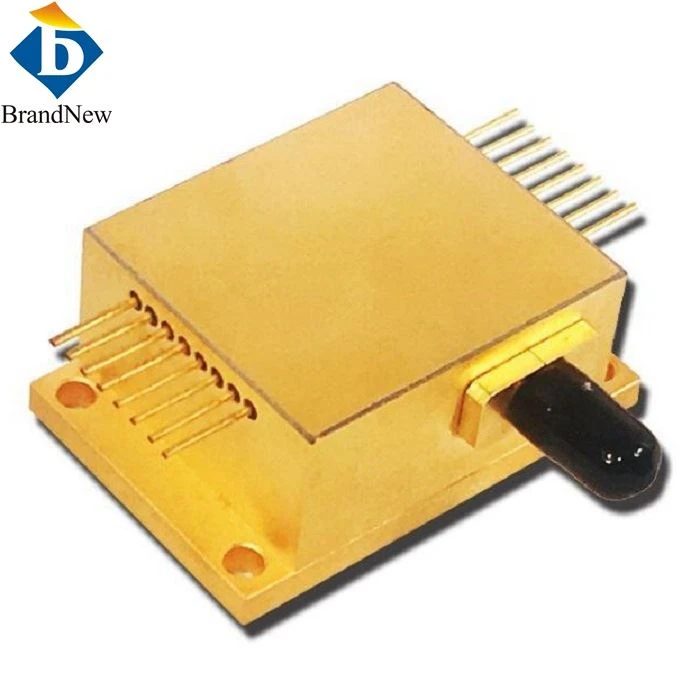

Daim duab:
