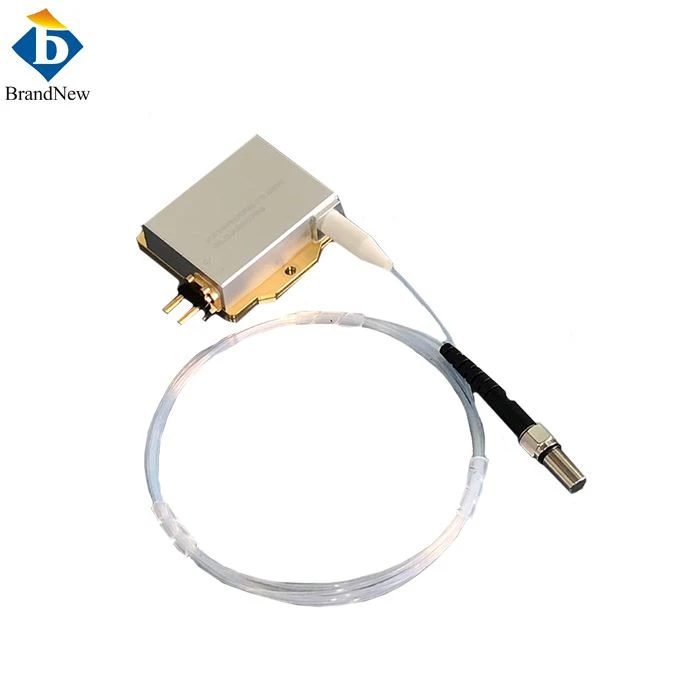

Fiber Coupled Laser Diode Modules
Txheej txheem cej luam
Nta:
Fiber ntau: 105um / 0.22NA / 1-2m / SMA905
Fiber ntev tuaj yeem hloov kho
Detachable fiber ntau, Aiming Beam, PD, Thermistor ua haujlwm yeem
Diode laser nti los ntawm lub teb chaws Yelemees thiab submount los ntawm Nyiv
Lub neej ntev: tshaj 10000hours
Lwm cov wavelength thiab cov zis hluav taws xob muaj, pls xav tiv tauj peb kom paub ntau ntxiv.
Email: info@brandnew-china.com
Daim ntawv thov:
Kev tiv thaiv teb: illumination, hnov
Kev lag luam teb
Kev kho mob laser: bio-kev kho mob, cov txheej txheem kho mob, kev kho kom zoo nkauj
Kev tshawb fawb thiab kev tshawb fawb
Xaus twj
Yas vuam
Daim ntawv Spec
Yam khoom no: FC915DL70
| Kho qhov muag | |
| Center Wavelength | 915nm ua |
| Wavelength kam rau ua | ± 10nm |
| Tso zis zog | 70W |
| Spectral Width FWM | 6nm ua |
| Slope Efficiency | 4W/A |
| Fiber ntau | |
| Fiber tub ntxhais | 105 ua |
| Fiber Length | 1-2m |
| Fiber NA | 0.22 NOS |
| Hluav taws xob | |
| Kev khiav hauj lwm tam sim no Iop | 14.5A |
| Threshold Current Ith | 1.1A |
| Ua haujlwm Voltage Vop | 9.6V |
| Kub | |
| Ua haujlwm kub | 15-35 ° C |
| Cia Kub | -20 ~ 70 degree |
| Wavelength Temperature Coefficient | 0.3nm / degree |
Pob Drawing:
FAQ:
Koj cov nqe lus them nqi yog dab tsi?
T / T lossis Western Union, rau koj xaiv.
Dab tsi yog pob?
Original Carton Pob. Los yog raws li cov neeg siv khoom xav tau.
