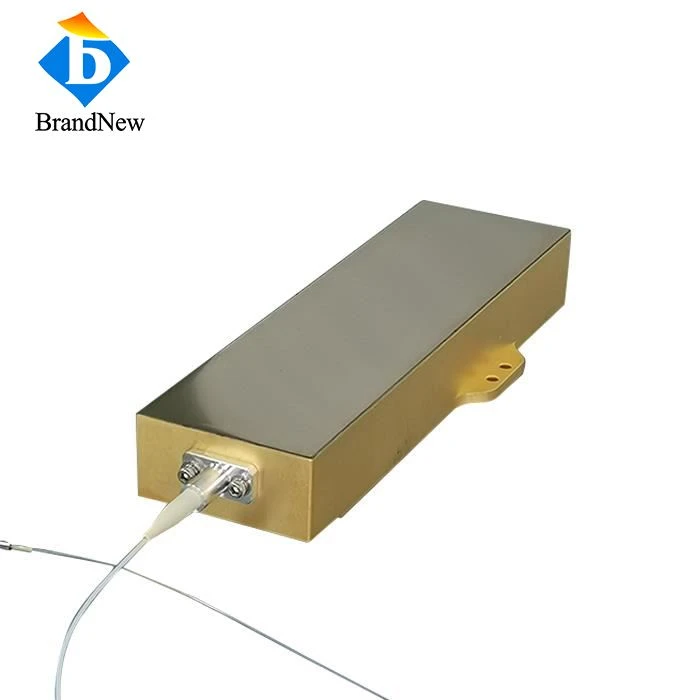

Fiber Coupled Laser Module
Qhov zoo ntawm fiber ntau lasers suav nrog kev ua haujlwm siab, kev ntseeg siab, siab tso zis zog, muaj zog tunability, compactness, thiab lightness. Cov txiaj ntsig zoo no tau ua rau muaj kev nce ntxiv hauv kev nkag mus ntawm fiber ntau lasers hauv kev tsim khoom thiab kev loj hlob tsis tu ncua hauv kev lag luam. Piv txwv li, nyob rau hauv kev lag luam teb, lasers yog dav siv nyob rau hauv txiav, vuam, kos, engraving, tu, cladding, 3D printing thiab lwm yam technologies. Nrog rau kev hloov pauv ntawm kev lag luam kev lag luam mus rau siab - kawg thiab ntse, fiber ntau lasers tau nce siv hauv kev tsim khoom vim lawv cov kev ua tau zoo thiab muaj zog siv tau.
Nta:
808nm, 9xxnm raug wavelength
Tso zis zog mus txog 750W
Parallel weld 2-Pin kaw pob
Cov ntawv thov tseem ceeb: Laser Pumping, Khoom siv, Kev Kho Hniav, Luam Ntawv, Direct Diode Lasers
Yog xav paub ntxiv, pls xav tiv tauj peb ntawm Email: info@brandnew-china.com
Cov ntaub ntawv ntawm cov khoom kub
Yam khoom no: FC976DL100
|
Kho qhov muag |
|
|
Center Wavelength λ |
976nm ± 10nm |
|
Tso zis zog |
100W |
|
Spectral Width FWM |
1nm ib |
|
Slope Efficiency |
12.6W/A |
|
Fiber ntau |
|
|
Fiber Khoov Radius |
>30 hli |
|
Fiber Core/Cladding/Buffer Diameter |
105um / 125um / 250um |
|
Fiber ntau aperture |
0.15 NOS |
|
Fiber Length |
1-2m |
|
Fiber Connector |
Pem Hauv Ntej / SMA905 |
|
Hluav taws xob |
|
|
Kev khiav hauj lwm tam sim no Iop |
10A |
|
Threshold Current Ith |
0.5A |
|
Ua haujlwm Voltage Vop |
26.8V |
|
Fais fab Hloov Efficiency |
45% |
|
Kub |
|
|
Ua haujlwm kub (Tsis yog-Condensing) |
10 ~ 40 degree |
|
Cia Kub (Tsis yog -Condensing) |
-20 ~ 80 degree |
|
Wavelength Temperature Coefficient |
-0.02nm / degree |
Kev kos duab
