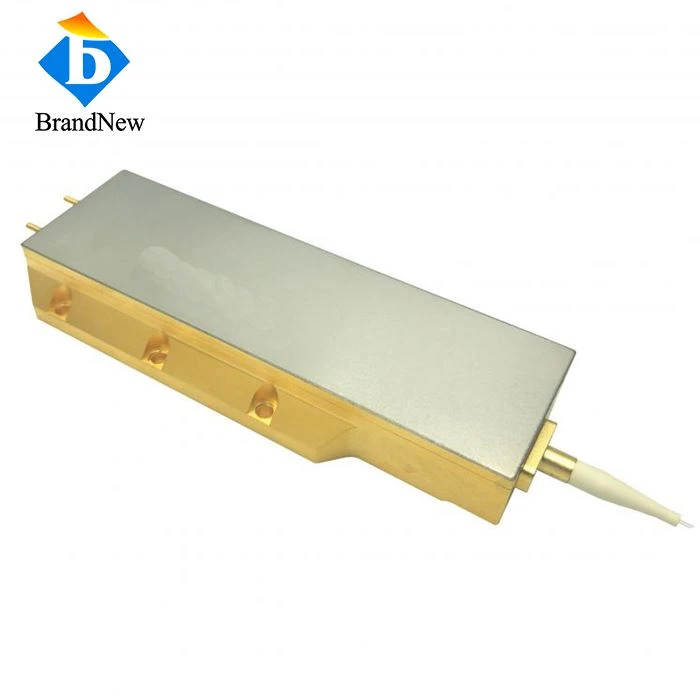

High Power Fiber Coupled Diode Laser ntawm 808nm
Txheej txheem cej luam
Cov yam ntxwv tseem ceeb:
Muaj nrog txog 180 W ntawm lub zog siab tshaj plaws ntawm 808nm
Multi-Single Emitter Chip Technology
Integrated Back Reflection Isolation
Ua-hauv kev tshawb pom lub zog, liab aiming beam thiab ntsuas kub ntsuas thermistor xaiv tau
Tshwj xeeb yog tsim los rau kev kho mob, kev siv dej thiab kev tshawb fawb tshawb fawb
Kev xaiv:
Lwm cov wavelength thiab cov zis hluav taws xob muaj, pls conatct peb rau ntau txoj kev xaiv
(Email: info@brandnew-china.com)
450nm txog 200W
793nm txog 140W
915nm txog 750W
940nm txog 200W
976nm mus rau 320W
Daim ntawv qhia:
Yam khoom no: FC808DL100
| Kho qhov muag | |
| Center Wavelength | 808nm ua |
| Wavelength kam rau ua | ± 5nm |
| Tso zis zog | 100W |
| Spectral Width FWM | 5nm ua |
| Slope Efficiency | 12W/A |
| Fiber ntau | |
| Fiber ntau aperture | 0.22 NOS |
| Fiber Length | 1.5m |
| Fiber Connector | Liab qab |
| Hluav taws xob | |
| Kev khiav hauj lwm tam sim no Iop | 9.5A |
| Threshold Current Ith | 1A |
| Ua haujlwm Voltage Vop | 27V |
| Fais fab Hloov Efficiency | 40% |
| Kub | |
| Ua haujlwm kub | 15-35 ° C |
| Cia Kub | -20-55 ° C |
| Wavelength Temp. Coefficient | 0.3nm / degree |
Daim duab:
