Brandnew Technology, yog ib lub tuam txhab diode laser manufacturers thiab lwm tus neeg nyob hauv Suav teb, muaj lub Hoobkas tshaj lij uas cov tuam txhab zoo 974nm 976nm 980nm 10pins npauj npaim fbg diode laser thiab muag ntawm tus nqi sib tw. Txais tos rau wholesale peb cov khoom ua nyob rau hauv Suav teb.
976nm 500mW 10Pins Npauj Npaim FBG Fiber Coupled Pump Diode Laser
Nta:
- Cov zis fais fab: 500mW ruaj khov CW tso zis, 976nm wavelength
- Pob Hom: 10Pins npauj npaim pob, compact loj
- Fiber Bragg Grating rau siab stability thiab nqaim linewidth.
Daim ntawv thov:
- Dense Wavelength Division Multiplexing (DWDM) Systems: Raws li qhov siab -stability twj tso kua mis qhov chaw, nws muab cov teeb pom kev ruaj khov rau DWDM systems, txhawb nqa siab me ntsis- tus nqi thiab siab channel- suav kis.
- Erbium-Doped Fiber Amplifiers (EDFAs): Siv los ua lub twj tso kua mis rau EDFAs, uas tsis tshua muaj qhov muag tsis pom thiab kev ua haujlwm ruaj khov, txhim kho lub teeb liab lub zog ntawm kev sib txuas lus kho qhov muag.
- CATV Distribution: Siv rau CATV (cable TV) kev faib khoom, muab kev txhawb nqa lub teeb liab ruaj khov, ua kom pom tseeb cov teeb liab sib kis thiab cov duab zoo ib yam.
Daim ntawv qhia
Yam Tsis Tau: FC976SM05
| Kho qhov muag | |
| Center Wavelength | 976nm ua |
| Wavelength kam rau ua | ± 1nm |
| Tso zis zog | 500mW ib |
| Fiber ntau | |
| Fiber tub ntxhais | Hlo 1060 |
| Fiber Length | >1m / 0.9 hli Jacket |
| Fiber Connector | FC/APC |
| Hluav taws xob | |
| Kev khiav hauj lwm tam sim no Iop | <1000mA |
| Threshold Current Ith | 90mA ua |
| Ua haujlwm Voltage Vop | 2.5V |
| Thermistor | Muaj |
| TEC | Muaj |
| PD | Muaj |
| Kub | |
| Kev ntsuas kub | 25 degree |
| Cia Kub | -40 ~ 80 degree |

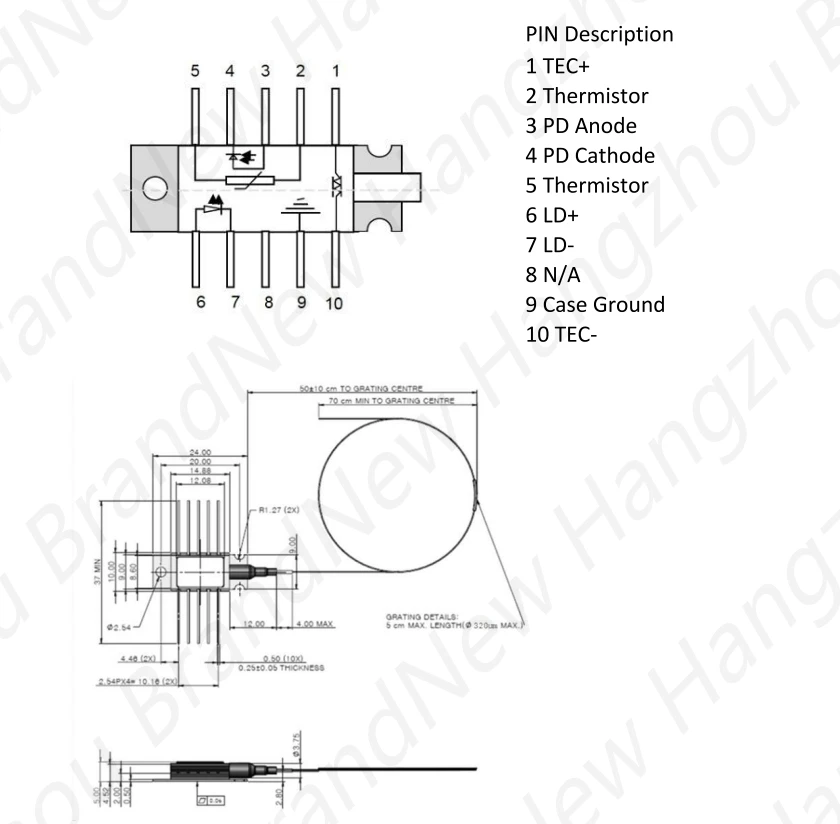

Daim duab:
Cim npe nrov: 974nm 976nm 980nm 10pins npauj npaim fbg diode laser lwm tus neeg Suav teb, hoobkas, lag luam wholesale, ua nyob rau hauv Suav teb
