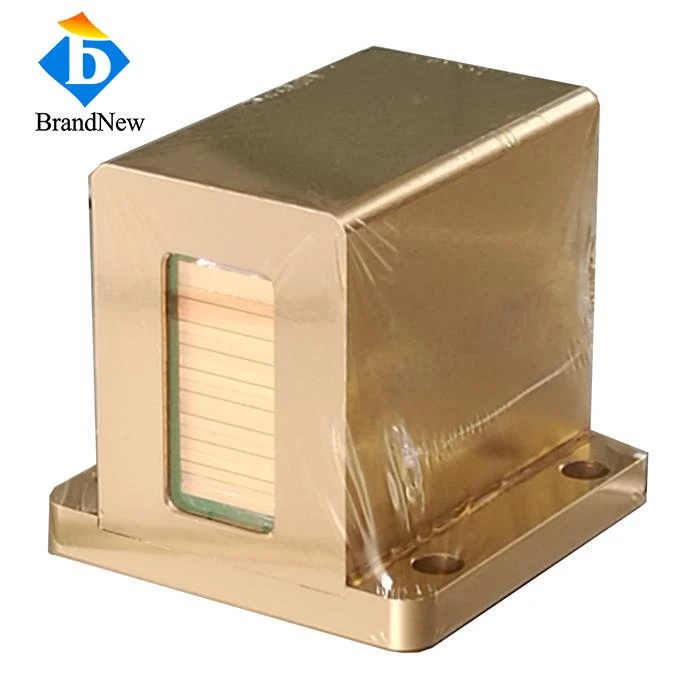

10 Bars Diode Laser Array
Nta
Lub diode laser array nrog lub qhov rais tiv thaiv.
Yooj yim dej txias thiab tsis muaj kev kub siab thiab dej zoo.
808nm ib wavelength los yog triple wavelength ua ke xaiv
Uniform zog faib
Lub tshuab thev naus laus zis ntawm Laser Collimated Technology ua kom muaj zog ntau dua
Siv Cov Lus Qhia:
Qhov tseeb dej ntws los ntawm lub laser yog ntau dua los yog sib npaug rau 4.5L / min;
Lub davhlau ya nyob twg siv cov neeg siv khoom los hloov lub lim rau 6 lub hlis kom ntseeg tau tias cov dej ntws zoo li qub thiab xyuas kom meej tias lub laser ua haujlwm ntawm qhov kub thiab txias.
Daim ntawv qhia
Yam khoom no: WC781VS600
| Kho qhov muag | |
| Center Wavelength | 755nm, 808nm, 1064nm |
| Wavelength kam rau ua | ± 10nm |
| Output Power Ib Bar | 60W |
| Number of Bars | 10 |
| Pulse Dav | Tsawg dua lossis sib npaug li 400ms |
| Lub luag haujlwm Cycle | Tsawg dua lossis sib npaug li 40% |
| Hluav taws xob | |
| Kev khiav hauj lwm tam sim no Iop | ~50A |
| Threshold Current Ith | ~10A |
| Ua haujlwm Voltage Vop | ~19V |
| Fais fab Hloov Efficiency | ~50% |
| Kub | |
| Ua haujlwm kub | 20 ~ 30 degree |
| Cia kub | 0-55 degree |
Daim duab loj:
