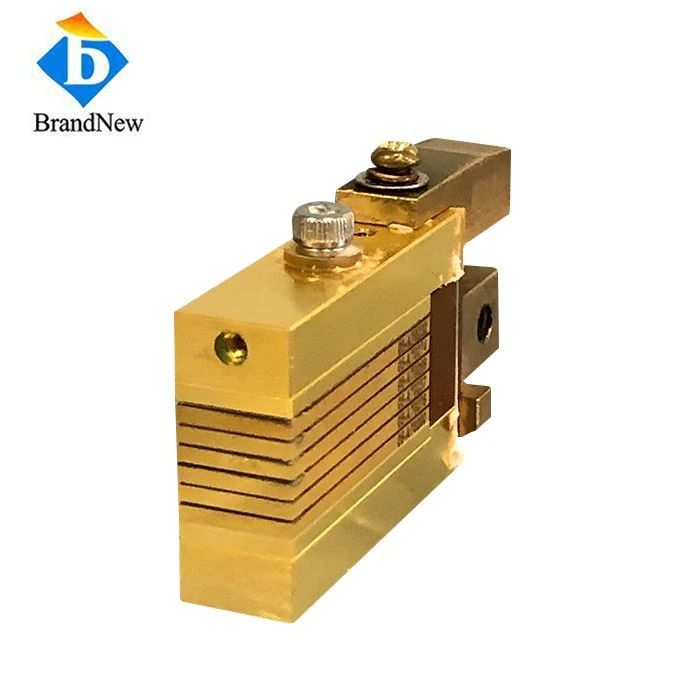

MCC Diode Laser Bars Stack
Txheej txheem cej luam
Nta:
MCC Bar, micro channel, CW
100W tso zis ib bar, 3-6 Bars yeem
Kev ntseeg siab diode laser vertically pawg
Dav siv nyob rau hauv daim ntawv thov tshem tawm cov plaub hau
Dhau li cov pawg tsis tu ncua, Brandnew kuj tuaj yeem kho ntau pawg raws li peb cov neeg siv khoom xav tau.
Nco tseg:
Lub teeb laser emissions los ntawm cov cuab yeej no tsis pom thiab yuav ua rau muaj kev phom sij rau tib neeg lub qhov muag. Tsis txhob saib ncaj qha mus rau hauv cov zis fiber ntau los yog mus rau hauv cov kab sib dhos nrog nws cov axis kho qhov muag thaum lub cuab yeej ua haujlwm. Cov looj tsom iav zoo laser yuav tsum hnav thaum ua haujlwm.
Daim ntawv Spec
Yam khoom no: WC808VS600
| Kho qhov muag | |
| Center Wavelength | 808nm ua |
| Output Power Ib Bar | 100W |
| Number of Bars | 6 |
| Pulse Dav | Tsawg dua los yog sib npaug li 400ms |
| Lub luag hauj lwm Cycle | Tsawg dua lossis sib npaug li 40% |
| Hluav taws xob | |
| Kev khiav hauj lwm tam sim no Iop | ~100A |
| Threshold Current Ith | ~10A |
| Ua haujlwm Voltage Vop | ~12V |
| Fais fab Hloov Efficiency | ~50% |
| Kub | |
| Ua haujlwm kub | 20 ~ 30 degree |
| Cia Kub | 0-55 degree |
Kev kos duab
![{]]PTL2}`I@TXG5T)}IUR@4](/Content/uploads/202098745/20200710135017cb3c6a776ab348ad85bf00f00bb441a4.png "product-1-1")
