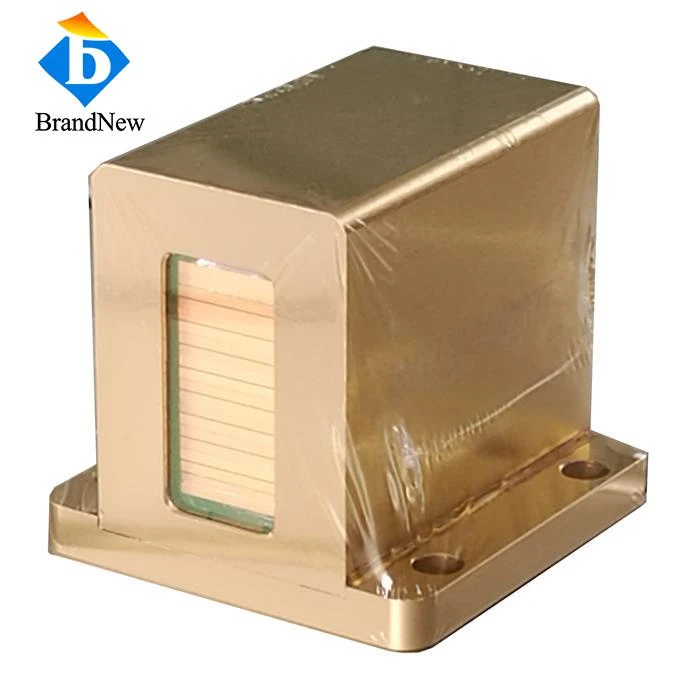

10 Bars Diode Laser Stack Rau Xlaser
Cov yam ntxwv tseem ceeb:
10 bar Standard loj
Macro channel, dej txias
nrog kev ua haujlwm tam sim no 50A, voltage 18V
Warranty yog 20 lub hlis, ntau tshaj 30 lab txhaj tshuaj
Tsim nyob rau hauv cov chav huv si thiab tag nrho kaw nrog nitrigen sab hauv kom zoo heev ib puag ncig compatibility.
Daim ntawv qhia
Yam khoom no: WC808VS600
| Kho qhov muag | |
| Center Wavelength | 808nm ua |
| Wavelength kam rau ua | ± 10nm |
| Output Power Ib Bar | 60W |
| Number of Bars | 10 |
| Pulse Dav | ≤400ms |
| Lub luag hauj lwm Cycle | ≤40% |
| Hluav taws xob | |
| Kev khiav hauj lwm tam sim no Iop | ~50A |
| Threshold Current Ith | ~10A |
| Kev khiav hauj lwm Voltage Vop | ~18V |
| Fais fab Hloov Ua Haujlwm | ~50% |
| Kub | |
| Ua haujlwm kub | 20~30℃ |
| Cia Kub | 0-55℃ |
| Lwm tus | |
| Coolant | Dej Distilled |
| Flow Rate / Bar | 4 ~ 6L / min |
| Max Inlet Siab | 350 ~ 500kPa |
| Dej kub (tsis condensation) | 23~27℃ |
| Filtered Dej Particles | & lt; 20μm |
Pob Drawing
