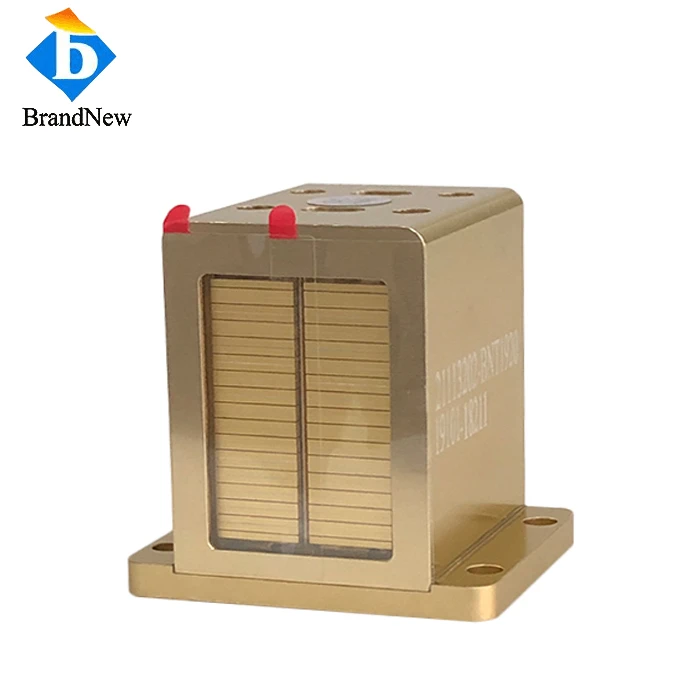

26Bars 1300W Lub Hwjchim Loj Laser Stack
Nta:
808nm ib wavelength los yog 3 sib txawv wavelength mix
755nm+808nm+1064nm rau txhua hom plaub hau thiab xim
Ausu Soldering ua kom muaj kev ntseeg siab.
50W ib bar, 26 tuav, tus naj npawb ntawm cov tuav tuaj yeem kho tau.
Lub zog tso zis siab 1300W kom ntseeg tau tias muaj txiaj ntsig zoo ntawm qhov ceev loj hauv cheeb tsam tshem tawm cov plaub hau
Dav siv rau daim ntawv thov tshem tawm cov plaub hau
Daim ntawv qhia
Yam khoom: WC808VS1300
| Kho qhov muag | |
| Center Wavelength | 808nm ua |
| Wavelength kam rau ua | ± 10nm |
| Ua hauj lwm hom | QCW |
| Tso zis zog | 1300W |
| Number of Bars | 26 |
| Fast Axis Divergence (FWHM) | 38 Deg |
| Slow Axis Divergence (FWHM) | 12 Deg |
| Hluav taws xob | |
| Kev khiav hauj lwm tam sim no | 50A |
| Hnub Nyoog Tam Sim No | 10A |
| Kev khiav hauj lwm voltage | 47V |
| Kub | |
| Ua haujlwm kub | 20 ~ 30 degree |
| Cia Kub | 0-55 degree |
| Lwm tus | |
| Coolant | Dej Distilled |
| Flow Rate / Bar | 4 ~ 6L / min |
| Max Inlet Siab | 350 ~ 500kPa |
Pob Drawing
![{~RS}]RKX1~QO$VMO]3S5M2](/Content/uploads/202198745/2021112615250877d8fc3cbc0843d9975fab4f80d1110d.png "product-1-1")
FAQ:
Dab tsi yog lub neej ntev ntawm lub laser diode pawg?
Lub neej ntev yog nyob ntawm kev siv cov xwm txheej thiab kev ua haujlwm tsis zoo, tab sis zoo - khaws cia laser diode stacks tuaj yeem muaj 20 lab txhaj tshuaj.
Lub wavelength ntawm txhua lub diode hauv ib pawg tuaj yeem hloov kho?
Yog lawm, BrandNew muab kev pabcuam customized rau laser diode pawg wavelength kom tau raws li cov ntawv thov tshwj xeeb.
