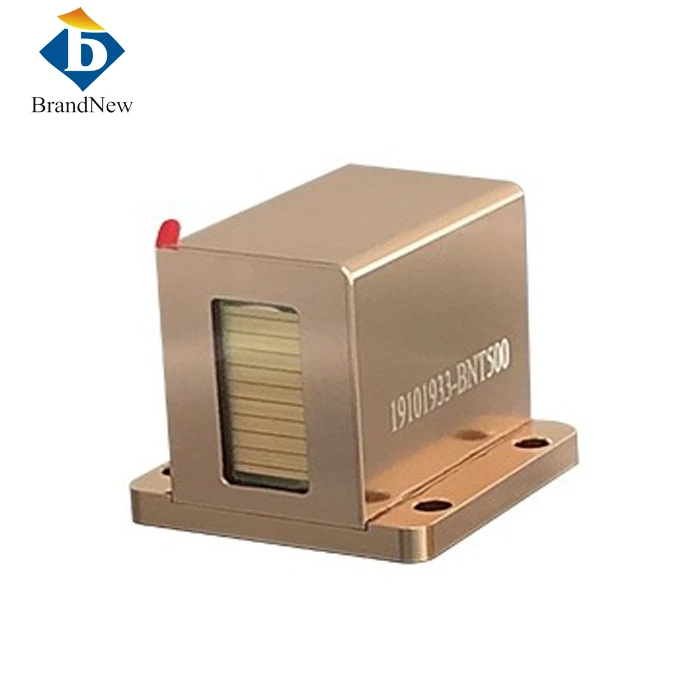

600W Diode Laser Stack
Product Description
Ib pawg diode (tseem hu ua diode laser stack, multi-bar module, los yog ob-dimensional laser array) muaj ntau lub diode tuav, uas tau teem rau hauv daim ntawv ntawm pawg.
600W diode laser pawg yog dav siv hauv daim ntawv thov tshem tawm cov plaub hau. Peb muab kev ntseeg siab diode laser vertically pawg los ntawm tuav. Optical tso zis hwj chim yog 60W ib bar. Ib txwm wavelengths yog 808nm. Dhau li cov pawg tsis tu ncua, peb tuaj yeem kho ntau pawg raws li koj xav tau
Daim ntawv thov:
◆ Cov plaub hau tshem tawm tshuab kov
◆ Kev zoo nkauj tshuab kov
Paub meej:
| Kho qhov muag | |
| Center Wavelength | 808nm ua |
| Wavelength kam rau ua | ± 10nm |
| Ua hauj lwm hom | QCW |
| Output Power Ib Bar | 60W |
| Number of Bars | 10 |
| Bar rau Bar Spacing | 2 hli |
| Fast Axis Divergence | ~ 38 Deg |
| Slow Axis Divergence | ~12 Deg |
| Polarization hom | TE |
| Slop Efficiency | Ntau tshaj lossis sib npaug rau 1.0W / A |
| Hluav taws xob | |
| Kev khiav hauj lwm tam sim no Iop | 55~60A |
| Threshold Current Ith | 11~13A |
| Ua haujlwm Voltage Vop | 19~21V |
| Fais fab Hloov Efficiency | 45~48% |
| Kub | |
| Kev khiav hauj lwm kub (tsis muaj condensation) | 15 ~ 30℃(Tsis muaj condensation) |
| Cia kub (tsis muaj condensation) | 0-55℃(tsis muaj condensation) |
| Lwm tus | |
| Coolant | Lim dej |
| Flow Rate / Bar | 3.5L ~ 4.5L / min |
| Max Inlet Siab | 400kPa ib |
| Dej kub (tsis condensation) | 15 ~ 25℃(tsis muaj condensation) |
| Filtered Dej Particles | <20μm |
Kev kos duab:
