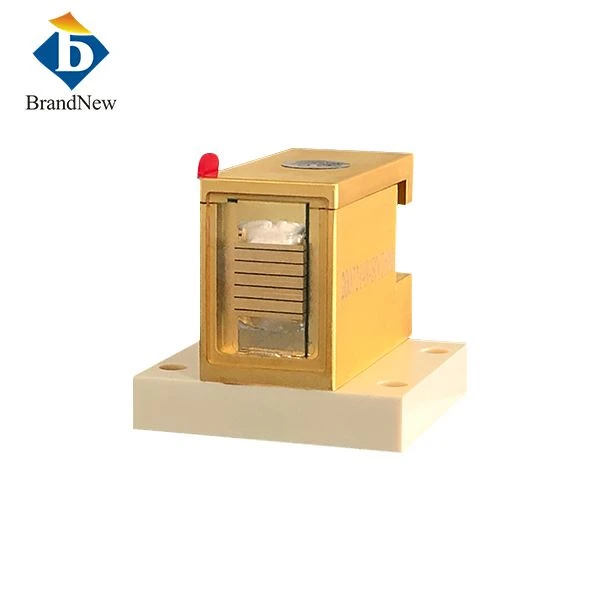

Hloov rau Micro Channel Diode Stack
Microchannel tsim yog optically hu ua ntsug pawg txias tshuab, uas yog tus cwj pwm los ntawm micro dej raws uas yog qhov yooj yim pom ntawm qhov muag liab qab. Muaj 5 qhov dej me me ntawm txhua lub nti, thiab qhov nruab nrab txoj kab uas hla ntawm txhua qhov dej channel yog li 0.03mm. Qhov kev tsim no yog hom ultra- kev ua tiav. Through the dense internal water channel design, extremely high heat dissipation is achieved, about 100W per square centimeter, almost encapsulating the bars in water, thus providing excellent heat dissipation performance. Lub microchannel tsim tsis tsuas yog ua kom lub neej ntawm laser, tab sis kuj optimizes lub zog tso zis, kom cov txiaj ntsig zoo tuaj yeem ua tiav hauv daim ntawv thov tshem tawm cov plaub hau laser.
Nta:
6 Bars, Tus naj npawb ntawm cov tuav tuaj yeem hloov kho, mus txog 10 tuav.
Zoo tib yam li CW micro channel diode laser pawg.
Lub zog siab siab, Lub voj voog ua haujlwm siab, kev tiv thaiv corrosion, Hard{0}}lub tshuab ntim tshuab
Cov dej zoo yuav tsum tsis siab (tsis tas yuav deionize dej, tab sis cov dej hais<100μm)
Daim ntawv Spec
Yam khoom no: WC808VS600
Cov khoom npe: 600W 808nm Vertical Stack Diode Laser
| Kho qhov muag | |
| Center Wavelength | 808nm ua |
| Output Power Ib Bar | 100W |
| Number of Bars | 6 |
| Pulse Dav | Tsawg dua los yog sib npaug li 400ms |
| Lub luag haujlwm Cycle | Tsawg dua lossis sib npaug li 40% |
| Hluav taws xob | |
| Kev khiav hauj lwm tam sim no Iop | ~100A |
| Threshold Current Ith | ~10A |
| Ua haujlwm Voltage Vop | ~12V |
| Fais fab Hloov Efficiency | ~50% |
| Kub | |
| Ua haujlwm kub | 20 ~ 30 degree |
| Cia Kub | 0-55 degree |
Kev kos duab
![{]]PTL2}`I@TXG5T)}IUR@4](/Content/uploads/202098745/20200710135017cb3c6a776ab348ad85bf00f00bb441a4.png "product-1-1")
