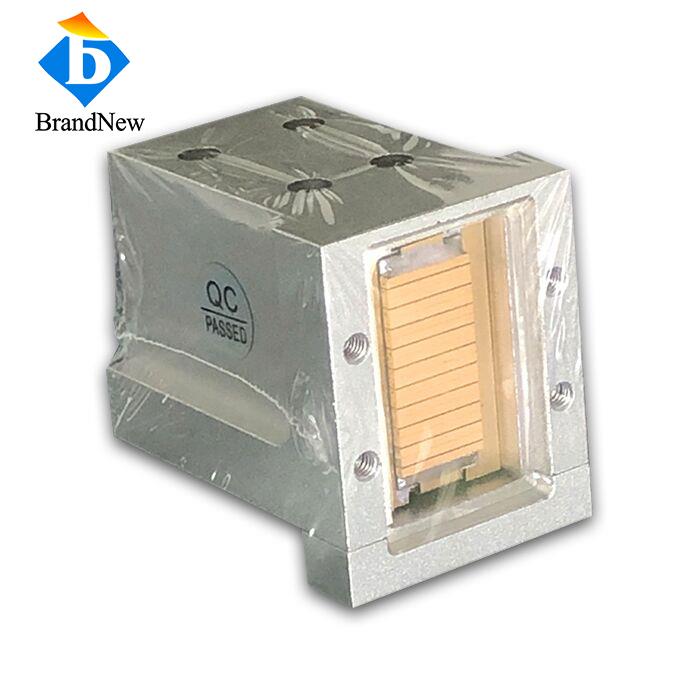

Dej Txias Diode Laser Bars Stack
Nta:
808nm ua
QCW Mode
Macro-Channel Dej Txias
Peb tuaj yeem kho qhov Dimension ntawm Diode Laser Bar raws li tus neeg siv khoom' s thov.
| Kho qhov muag | Min | Ntaus | Max | Chav tsev |
| Central Wavelength | 798 | 808 | 818 | nm |
| Output Power Ib Bar | 60 | W | ||
| Number of Bars | 10 | |||
| Ua hauj lwm hom | QCW | |||
| Bar rau Bar Spacing | 2 | mm | ||
| Fast Axis Divergence (FWHM) | 38 | Deg | ||
| Slow Axis Divergence (FWHM) | 12 | Deg | ||
| Polarization hom | TE | |||
| Slope Efficiency | 1.05 | 1.15 | W/A |
| Hluav taws xob | Min | Ntaus | Max | Chav tsev |
| Kev khiav hauj lwm tam sim no Iop | 60 | A | ||
| Threshold Current Ith | 11 | 17 | A | |
| Ua haujlwm Voltage Vop | 19 | 21 | V | |
| Hloov ua tau zoo | 45 | 48 | % |
| Kub | Min | Ntaus | Max | Chav tsev |
| Ua haujlwm kub | 15 | 25 | 30 | ℃ |
| Cia Kub | 0 | 55 | ℃ |
