Monocrom 808nm 1000W plaub hau tshem tawm Laser Lub taub hau
Nta:
-
Lub neej ntev, vim qhov tsis muaj kev ntxhov siab ntawm cov neeg kho tshuab los ntawm cov txheej txheem soldering ntawm qhov kub thiab txias thiab tsis txhob micro-channel rau dej- txias.
-
Kev ntseeg siab nyob rau hauv cov xwm txheej pulsed, txij li cov clamped tuav tsis raug kev txom nyem tib yam qaug zog dua li cov soldered vim lub thermal voj voog. Ntau tshaj 100.000.000 txhaj tshuaj.
-
Me me thermal kuj, vim qhov txo qis ntawm kev sib cuag ntawm electrodes thiab laser bar. Tsis xav tau micro channels kom ncav cuag cov thermal resistances tsawg.
-
Lub sij hawm loj cia ntsuas kub ntawm -40ºC txog + 85ºC
daim ntawv thov:
- Kev kho mob thiab
- Kev zoo nkauj
Specification
Yam khoom: WC808VS1000
Khoom Lub Npe: Monocrom 808nm 1000W Plaub Hau Tshem Tawm Laser Lub Taub Hau
| Kho qhov muag | |
| Center Wavelength | 808nm ua |
| Ua hauj lwm hom | QCW |
| Tso zis zog | 1000W |
| Tus naj npawb ntawm Bar | 20 |
| Wavelength kam rau ua | ± 10nm |
| Chaw | 10 * 12 hli |
| Hluav taws xob | |
| Kev ua haujlwm tam sim no Lop | ＜100A |
| Threshold Current Lth | 50A |
| Ua haujlwm Voltage Vop | 40V |
| Kub | |
| Kev ntsuas kub | -40℃-85 degree |
| Cia Kub | 0-55 degree |
| Coolant |
Dej Distilled |
| Flow Rate/bar | 4 ~ 6L / min |
| Max Inlet Siab | 350 ~ 500kPa |
| Filtered Dej Particles | <20um |
| Dej kub (tsis condensation) | 23-27 ° C |
Daim duab:

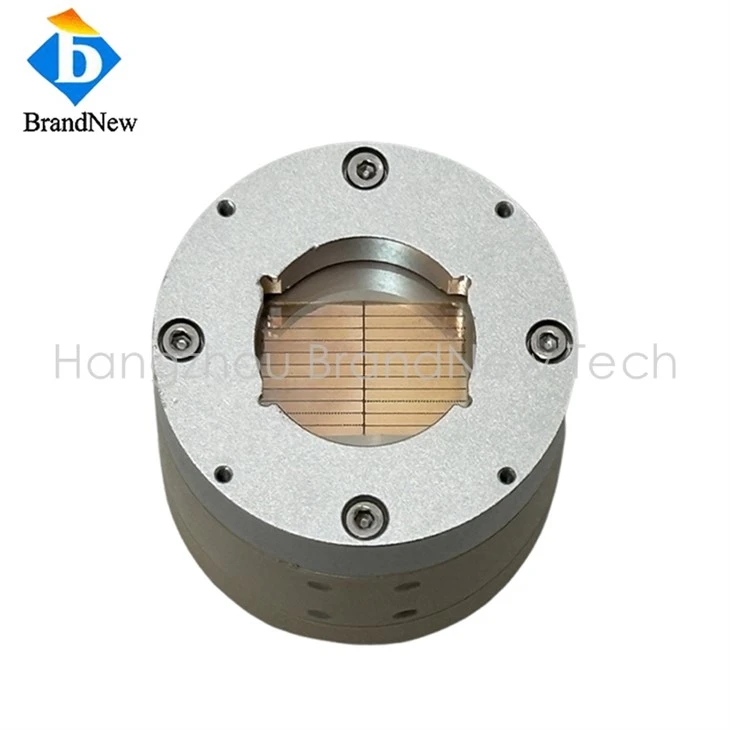

Monocrom 808nm 1000W Plaub Tshem Tawm Laser Lub Taub Hau nrog lub taub hau txias sapphire, 10x12mm² qhov chaw ntawm daim tawv nqaij, lub ultra- qhov chaw loj ua ke nrog lub zog siab ceev ua kom lub sijhawm kho ib zaug ntau dua 30%, thiab nce qhov nruab nrab ntawm cov neeg siv khoom txhua hnub. Haum rau tag nrho lub cev (bikini kab, nraub qaum, caj dab, thiab lwm yam), tshwj xeeb tshaj yog zoo ntawm kev kho mob sai heev ntawm cov tawv nqaij tawv, tawv nqaij. 808nm cov kws kho mob pom zoo kom tshem tawm cov plaub hau tas li txo qhov xav tau kev kho mob thiab ua kom cov neeg siv khoom ntseeg siab.
Specifications ntawm 20ºC, thaum pib ntawm lub neej.
1. Qhov hluav taws xob los ntawm cov khoom siv hluav taws xob yuav tsum siab dua, vim tias tam sim no siab yuav muaj qhov hluav taws xob poob hauv cov cables.
2. Cov tsis muaj peev xwm sib txawv nyob ntawm qhov tseeb prism tsim.
