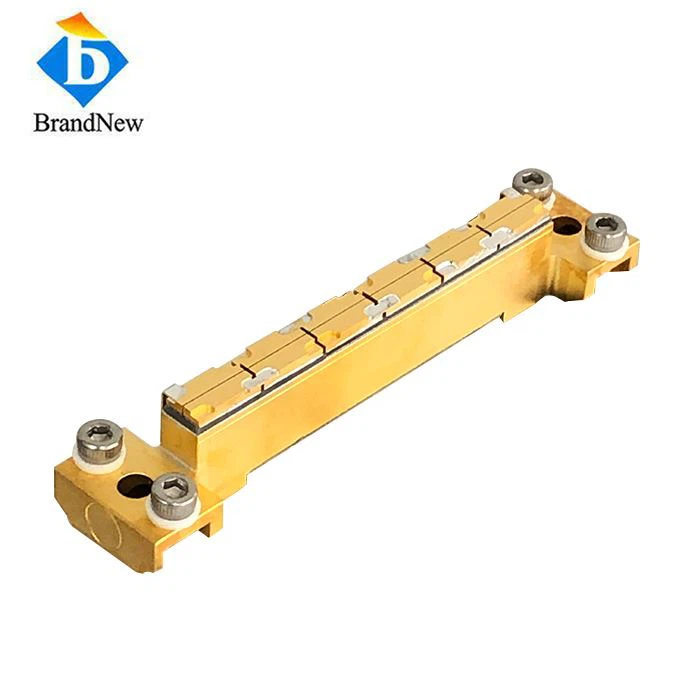

1200W 808nm Kab rov tav Stack Diode Laser
Lub 1200W 808nm Kab rov tav Stack Diode Laser yog lub laser pulsed nrog lub teeb siv zog thiab lub zog siab, uas tuaj yeem siv dav hauv ntau yam, suav nrog Diode-Pumped Solid-State, instrumentation, metallurgy thiab lwm yam. Peb 1200W 808nm Kab rov tav Stack Diode Laser muaj qhov nkag-theem, tab sis kuj muaj peev xwm siab. Qhov kev ua tau zoo ntawm txhua qhov bar yog 200W ib bar, 1200W ntawm lub zog tso zis siab thiab 100Hz zaus ...
Nta:
808nm wavelength, 1200W siab tso zis zog
CW ua haujlwm hom, mem tes dav 200us
Siv cov dej distilled los ua haujlwm
Flow tus nqi / bar 2 ~ 4L / min
Daim ntawv thov:
Diode-Pumped Solid-State
Kev tiv thaiv
Kev ua cov ntaub ntawv
Daim ntawv qhia:
Yam Tsis Tau: WC808HA1200
| Kho qhov muag | |
| Center Wavelength | 808nm ua |
| Tso zis zog | 1200W |
| Quantity ntawm Bars | 6 |
| Fast Axis Divergence (FWHM) | 38 Deg |
| Slow Axis Divergence (FWHM) | 12 Deg |
| Ntau zaus | 100 Hz |
| Pulse Dav | 200 mus |
| Hluav taws xob | |
| Kev khiav hauj lwm tam sim no Iop | 200A |
| Threshold Current Ith | 25A |
| Ua haujlwm Voltage Vop | 12V |
| Kub | |
| Kev ntsuas kub | 25 degree |
| Cia kub | 0-55 degree |
Pob ntawv kos duab:
