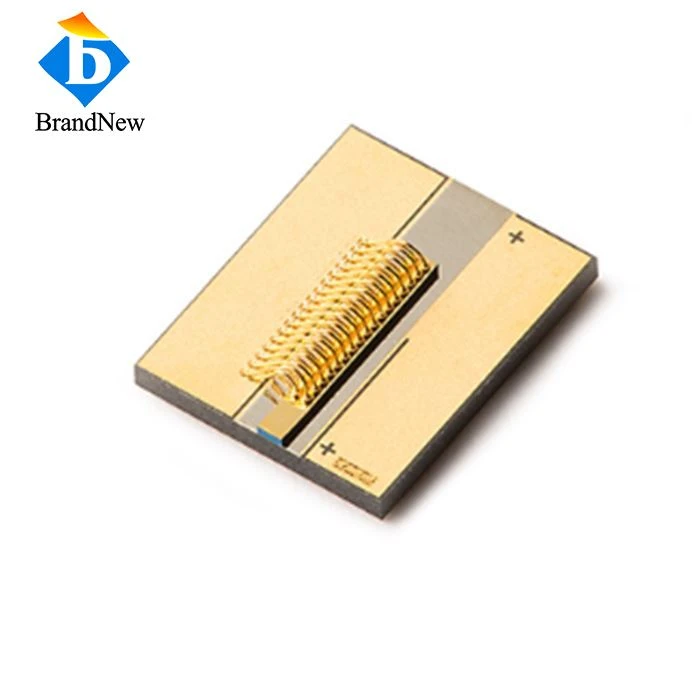

10W 980nm COS Laser Diode LD Chip ntawm Submount
Lub pob ntawm 10W 980nm COS Laser Diode LD yog nti ntawm submount. Lub Chip on Submount pob yog qhov zoo tagnrho rau kev koom ua ke rau hauv OEM kev daws teeb meem. Brandnew' nti ntawm submount pob muaj ob qhov loj kub hlau daim ntawv cog lus uas muab kev sib cuag rau cathode thiab anode ntawm semiconductor laser diode. Lub nti yog tsim los tsim FP laser kab noj hniav tuned kom emit hluav taws xob ntawm qhov xav tau wavelength. Cov diodes no muaj cov qauv quantum zoo. Tsis tas li ntawd, cov laser diodes no tsis muaj lub teeb pom kev hauv photodiode thiab yuav tsum tau ua haujlwm hauv hom tam sim no.
Cov ntsiab lus ceev:
980nm nruab nrab wavelength, 10W tso zis zog, 1.8V kev khiav hauj lwm voltage Vop
COS Pob, nti ntawm submount
Kev ntseeg siab thiab ruaj khov
High conversion efficiency 50 feem pua
Kub kub kuj yam ntxwv
Daim ntawv qhia
Yam Tsis Tau: COS980DL10
Khoom npe: 10W 980nm COS Laser Diode LD
| Kho qhov muag | |
| Center Wavelength | 980nm ua |
| Tso zis zog | 10W |
| Spectral Width FWM | 6nm ua |
| Slope Efficiency |
1.0W/A |
| Fast Axis Divergence | 30 Deg |
| Slow Axis Divergence | 10 Deg |
| Hluav taws xob | |
| Hnub Nyoog Tam Sim No | 1.5A |
| Kev khiav hauj lwm tam sim no | 12A |
| Kev khiav hauj lwm voltage | 1.8V |
| Fais fab Hloov Efficiency | 50 feem pua |
| Kub | |
| Ua haujlwm kub | 15-55 degree |
| Cia Kub | -30-70 degree |
| Wavelength Temp. Coefficient | 0.3nm/degree |
Daim duab:
