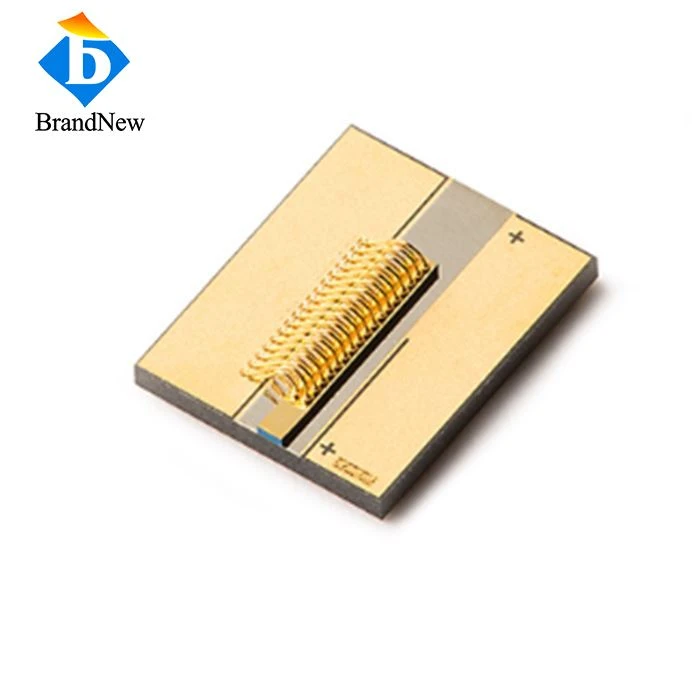

1W 1940nm COS Laser Diode
Peb muab 1W 1940nm COS Diode Laser Chip. Lub nti txais yuav cos ntim hom, uas ua rau nws ntau compact thiab yooj yim. Tsis tas li ntawd, peb cov chips yog qhov ua tau zoo heev thiab muaj lub neej ua haujlwm ntev. Peb tshwj xeeb hauv diode laser ntau xyoo, npog feem ntau ntawm cov teb chaws Europe thiab Asmeskas kev lag luam, peb cia siab tias yuav yog koj tus khub mus sij hawm ntev hauv Suav teb.
Feature:
Tus nqi zoo
Muaj txuj AlN submounts
AuSn soldering kom ntseeg tau ntev
Standard Tsawg Nqi Pob
Daim ntawv thov:
Yas Vuam
OEM kho mob
DPSS twj tso kua mis
LiDAR
Tub rog / Aerospace
Daim ntawv qhia
Yam Tsis Tau: COS1940DL1
Khoom npe: 1W 1940nm COS Laser Diode
| Kho qhov muag | |
| Center Wavelength | 1940nm ua |
| Tso zis zog | 0.8~1W |
| Spectral Width FWM | 6nm ua |
| Fast-Axis Divergence | 50 Deg |
| Slow-Axis Divergence | 35 Deg |
| Emitter Loj | 100 um |
| Hluav taws xob | |
| Kev khiav hauj lwm tam sim no Iop | 2.3A |
| Threshold Current Ith | 0.4A |
| Kev khiav hauj lwm Voltage Vop | 2.0V |
| Kub | |
| Ua haujlwm kub | 15-55℃ |
| Cia Kub | -30~70℃ |
Daim duab:
