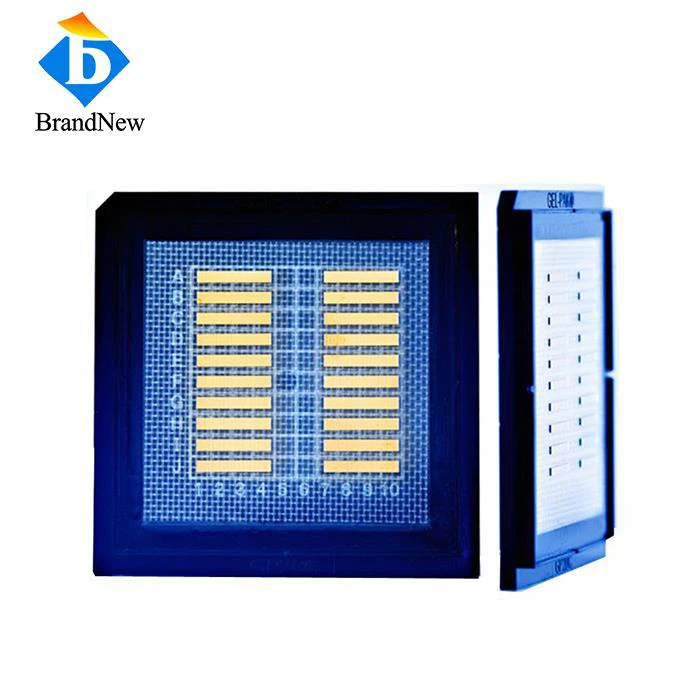

100W 808nm Unmounted Laser Bar
Nta:
Raws li kev ntsuas tam sim no yog 105W @ 100A (808nm)
optimized epitaxial qauv tsim
advanced kab noj hniav passivation txheej tshuab
kev ntim khoom siv hluav taws xob zoo dissipation
Specification:
Yam Khoom: LC808SB100
Kho qhov muag | Ntaus |
Central Wavelength | 808nm ua |
Tso zis zog | 100W |
Ua hauj lwm hom | CW |
Spectrum Dav | 4nm ua |
Tus naj npawb ntawm Emitter | 47 |
Emitter Dav | 100μm |
Emitter Pitch | 200μm |
Filling Factor | 50% |
Bar Dav | 10000μm |
Cavity Length | 1500μm |
Thickness | 125μm |
Hluav taws xob | |
Kev khiav hauj lwm tam sim no Iop | 105A |
Threshold Current Ith | 18A |
Ua haujlwm Voltage Vop | 1.8V |
Hloov ua tau zoo | 55% |
Kub | |
Ua haujlwm kub | 15-35℃ |
Wavelength Temperature Coefficient | 0.28nm / ℃ |
PIV Chart
