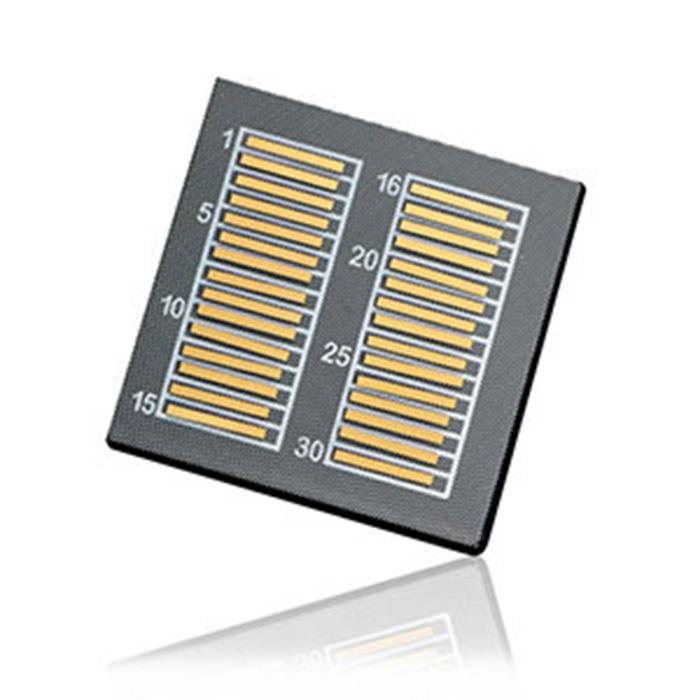

2W Unmounted Laser Bar
Unmounted laser bar yog lub hauv paus tsev thaiv rau siab - zog thiab siab - brightness semiconductor laser modules. Muaj ntau lub zog tso zis thiab wavelengths. Unmounted laser bar yog lub hauv paus tsev thaiv rau siab - zog thiab siab - brightness semiconductor laser modules. Muaj ntau lub zog tso zis thiab wavelengths. Unmounted laser bar yog ib qho hluav taws xob tivthaiv hauv lub laser, feem ntau yog ua los ntawm cov khoom siv semiconductor, mounted nyob rau hauv ib tug reflective kab noj hniav. Thaum siv hluav taws xob, cov khoom siv semiconductor ntawm ib lub raj me ntsis hloov nws cov khoom kho qhov muag, ua rau laser emission.
Nta:
Chip ntawm submount tsim muaj;
P Down ntim ntim;
High stability thiab lub neej ntev;
Kev ntseeg siab thiab AuSn kev sib raug zoo;
Kev ua raws li RoHS
| Tsis muaj | Min | Ntaus | Max | Chav tsev |
| Hwj chim | 2 | W | ||
| Lub wavelength | 820 | 830 | 840 | nm |
| Spectral Width (FWM) | - | 3 | - | nm |
| Polarization hom | - | TE | - | - |
| Wavelength hloov vs. Kub | - | 0.28 | - | nm / degree |
| Emitter Loj | - | 40 | - | μm |
| Kev khiav hauj lwm tam sim no | - | 2 | - | A |
| Kev khiav hauj lwm voltage | - | 1.8 | - | V |
| Fais fab Hloov Efficiency | - | 55 | - | % |
| Slop Efficiency | - | 1.2 | - | W/A |
| Ua haujlwm kub | - | 25 | - | degree |
