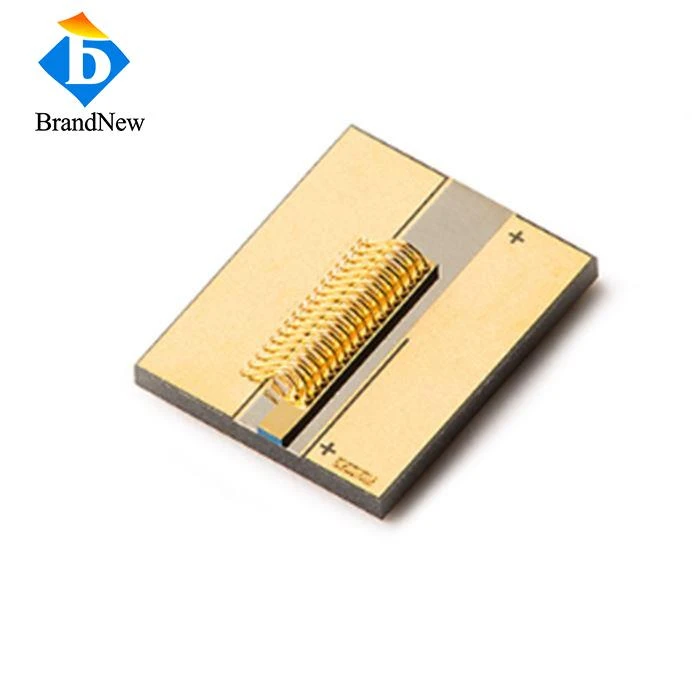

500mW 976nm Tib Longitude Hom COS Diode Laser



500mW 976nm Tib Longitude Hom COS Diode Laser

Nta:

l Chip onsubmount tsim l P Downsealed pob

l Highstability l Lub neej ntev

l Highreliability l AuSnbonding

l RoHS ua raws

Daim ntawv thov:

l Kev kho mob l Printing

l Kev lag luam l Pumping

Daim ntawv qhia:

Yam No.: COS974DL500

Kho qhov muag
Center Wavelength	974nm ua
Tso zis zog	500mW ib
Ua hauj lwm hom	CW
Longitudinal hom	Ib leeg
Spectrum Dav	2nm ua
Emitter Dav	4µm
Fast Axis Divergence (FWHM)	30 Deg
Slow Axis Divergence (FWHM)	30 Deg
Slope Efficiency	0.8W/A
Hluav taws xob
Hnub Nyoog Tam Sim No	30mA ua
Kev khiav hauj lwm tam sim no	800 mA
Kev khiav hauj lwm voltage	1.9V
Fais fab Hloov Ua Haujlwm	40%
Kub
Ua haujlwm kub	15-25℃
Wavelength Temp. Coefficient	0.3nm / ℃

Cov cuab yeej yog qhib-Heatsink Diode Laser; Nws tuaj yeem ua haujlwm hauv chav huv huv lossis cov vaj tsev tiv thaiv plua plav nkaus xwb. Kev khiav hauj lwm kub thiab txheeb ze av noo yuav tsum tau tswj kom tsis txhob muaj dej condensation ntawm lub laser facets. Txhua yam kab mob los yog kev sib cuag ntawm lub laser facet yuav tsum zam.
