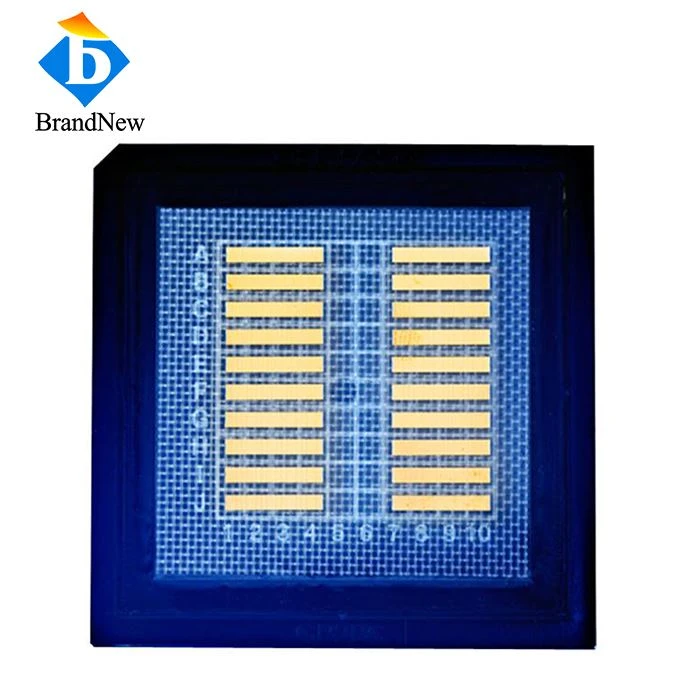

Hwj chim 100W 976nm CW Multi Emitter Diode Laser Chip Nrog 47 Emitters
Cov ntsiab lus ceev:
100W tso zis zog, 976nm nruab nrab wavelength
CW ua haujlwm hom, 47 emitters, TE Polarization hom
Advanced kab noj hniav passivation txheej tshuab
Raws li kev ntsuas tam sim no tsis tu ncua yog 105W @ 110A
Cov tshuab tshwj xeeb rau kev ntseeg siab tshaj plaws thiab lub neej ntev
Feature:
Tsawg voltage, lub neej ntev, kev ua haujlwm siab
Zoo heev solderability, siab brightness
Kub kub kuj yam ntxwv
Stability thiab kev cia siab rau kev ua tau zoo
Daim ntawv thov:
Dermatology thiab phais
Laser Illumination
Laser pumping qhov chaw
High-brightness semiconductor laser modules
Daim ntawv qhia
Yam khoom no: LC976DL100
Khoom npe: CW 100W 976nm Multi Emitter Laser Chip
| Kho qhov muag | Min | Ntaus | Max |
| Central Wavelength | 973nm ua | 976nm ua | 980nm ua |
| Tso zis zog | 100W | ||
| Ua hauj lwm hom | CW | ||
| Spectrum Dav | 4nm ua | ||
| Tus naj npawb ntawm Emitter | 47 | ||
| Emitter Dav | 100 um | ||
| Emitter Pitch | 200 ua | ||
| Filling Factor | 50% | ||
| Bar Dav | 9900 ua | 10000 um | 10 100 Nws |
| Cavity Length | 1990 | 2000 ua | 2010 |
| Thickness | 100 um | 120 ua | 140 ua |
| Fast Axis Divergence (FWHM) | 42 deg | ||
| Slow Axis Divergence (FWHM) | 12 deg | ||
| Polarization hom | TE | ||
| Slope Efficiency | 1.15W/A | ||
| Hluav taws xob | |||
| Kev khiav hauj lwm tam sim no Iop | 120A | ||
| Threshold Current Ith | 30A | ||
| Kev khiav hauj lwm Voltage Vop | 1.6V | 1.85V | |
| Hloov ua tau zoo | 55% | ||
| Kub | |||
| Ua haujlwm kub | 25℃ | ||
| Wavelength Temperature Coefficient | 0.35nm / ℃ |
Ntim
Kev them nyiaj
T / T thiab Western Union, Rau koj xaiv
Pob
FedEx, DHL Express, UPS, TNT
Txoj cai rov qab
Tus neeg yuav khoom them tus nqi Shipping.
Warranty
1.5 xyoo warranty lub sijhawm, hauv 1 xyoos, tag nrho cov kev pabcuam dawb.
