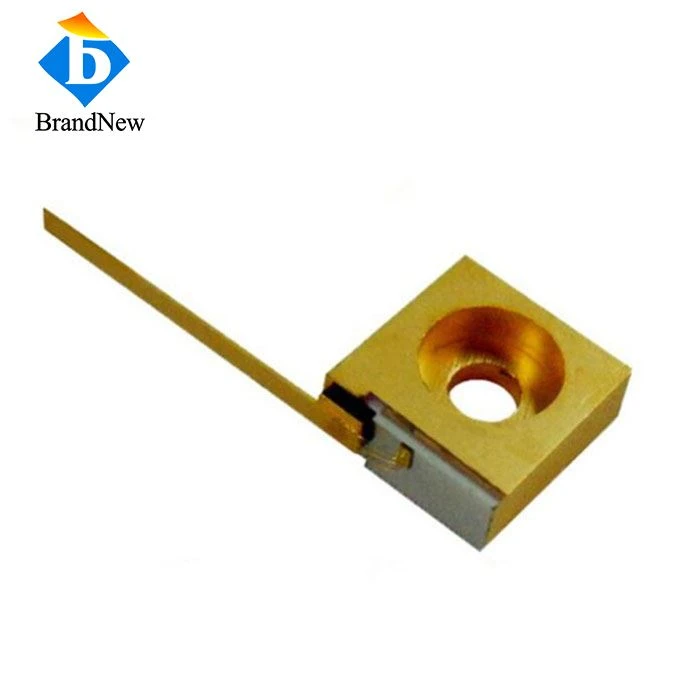

3W 1064nm C-Mount Diode Laser
3W 1064nm C-Mount Diode Laser yog ib hom semiconductor laser uas siv lub cylindrical hlau mount mus txuas rau lwm yam khoom. C-Mount tsim ua rau nws yooj yim los txuas lub diode rau lwm yam khoom xws li optics, cua sov dab dej, lossis tsav tsheb. Qhov kev tsim mount no tseem muab cov cua sov zoo dua, tso cai rau lub diode ua haujlwm ntawm cov hluav taws xob ntau dua yam tsis muaj cua sov.
Txheej txheem cej luam
Nta:
Tus nqi zoo
Siab tso zis zog
High Dynamic Range
Ua haujlwm siab
Standard Tsawg Nqi Pob
Fast axis divergence matched qeeb axis
Lwm cov pob khoom muaj nyob ntawm koj xaiv,
xws li TO Pob, F-Mount Pob, CS Pob, Fiber Coupled Laser Diode, thiab lwm yam.
Daim ntawv thov:
OEM kho mob
DPSS twj tso kua mis
LiDAR
Tub rog / Aerospace
Specification:
Yam Khoom: CM1064DL3
| Kho qhov muag | |
| Center Wavelength | 1064nm ua |
| Wavelength kam rau ua | ± 5nm |
| Tso zis zog | 3W |
| Spectrum Dav | 3.5nm ua |
| Polarization hom | TE |
| Slope Efficiency | Ntau dua lossis sib npaug rau 1.0W/A |
| Hluav taws xob | |
| Kev khiav hauj lwm tam sim no Iop | Tsawg dua lossis sib npaug li 4A |
| Threshold Current Ith | Tsawg dua lossis sib npaug rau 0.45A |
| Ua haujlwm Voltage Vop | Tsawg dua lossis sib npaug li 2.3V |
| Fais fab Hloov Efficiency | Ntau dua lossis sib npaug li 45% |
| Kub | |
| Ua haujlwm kub | 20-25 degree |
| Cia kub | -40 ~ 85 degree |
| Wavelength Temperature Coefficient | 0.3nm/degree |
Pob ntawv kos duab:
