Hauj lwm lawm

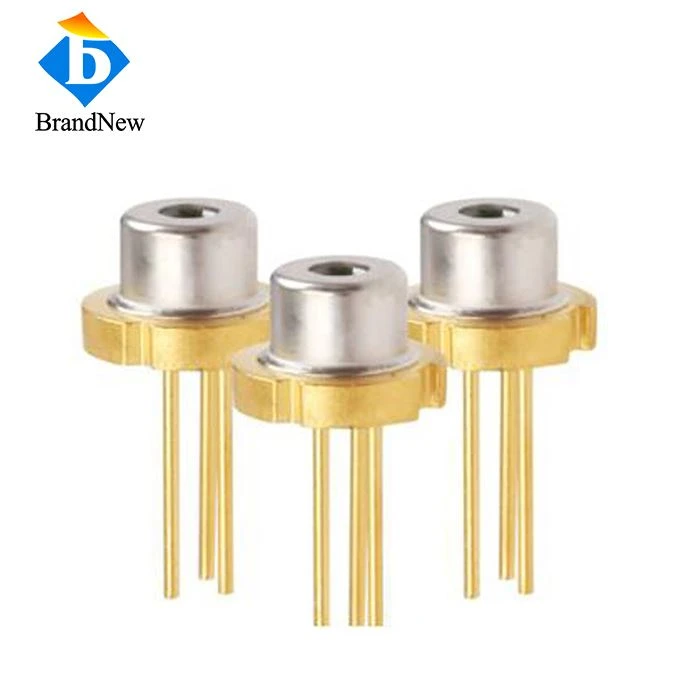

10W 905nm rau Laser Diode
Product Description
Cov 10W lasers no muaj nyob rau ntawm qhov nruab nrab wavelength ntawm 905nm. Lawv yog thaj chaw dav lasers (Single Emitter) rau kev paub thiab kev siv ntsuas ntsuas. Lawv tau tsim los rau kev ua haujlwm mem tes thiab muaj nyob rau hauv ib tus pin kaw TO-56 style vaj tsev
Daim ntawv thov
Laser rangefinder.
kev saib xyuas thiab ceev faj.
infrared teeb pom kev zoo.
Laser radar.
Sweeping neeg hlau
Daim ntawv qhia:
Yam khoom: LD905TO10
| Kho qhov muag | |
| Center Wavelength | 905nm ua |
| Wavelength kam rau ua | ± 10nm |
| Tso zis zog | 10W |
| Emitter Dav | 50 x 10 po |
| Pulse Dav | 5 nsq |
| Lub luag haujlwm Cycle | 0.10% |
| Hluav taws xob | |
| Kev khiav hauj lwm tam sim no Iop | 6A |
| Threshold Current Ith | 0.4A |
| Ua haujlwm Voltage | 5V |
| Kub | |
| Kev ntsuas kub | 25 degree |
| Cia Kub | -40 ~ 80 degree |
Daim duab loj:
