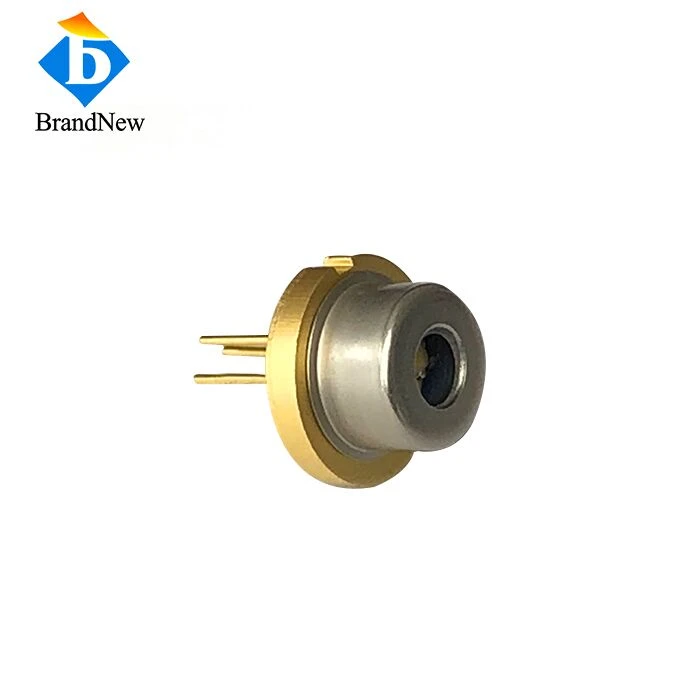

5mW / 10mW / 20mW 635nm Liab Pom Laser Diode
Qhov no yog ib tug high-efficient semiconductor thawj ntim brand tshiab laser diode uas muab emission wavelength ntawm 635nm thiab txheem teeb tso zis ntawm 5mw, 10mw, 20mw.
Nta:
Lub wavelength 635nm / 650nm
Lub zog 5mw, 10mw, 20mw
TO18-5.6mm stardard pob lossis TO-3.3mm me qauv
Hermetic encapsulation
Strained txheej quantum zoo
High efficiency thiab kev ntseeg siab
Built-in Diode Diode rau kev soj ntsuam cov zis laser
Daim ntawv thov:
Scanning, kho mob, kho laser, Laser qhia, Laser ntes
Daim ntawv qhia:
Yam khoom no: TO635DL10
Khoom npe: 10mw 635nm To-mounted laser diode
| Kho qhov muag | |
| Center Wavelength | 635nm ua |
| Wavelength kam rau ua | ± 10nm |
| Tso zis zog | 5mw ua |
| Ntim | TSO 56 or 33 |
| Hluav taws xob | |
| Kev khiav hauj lwm tam sim no Iop | 22 mA |
| Threshold Current Ith | 15 mA |
| Ua haujlwm Voltage Vop | 2.3V |
| Slope Efficiency | 0.9W/A |
| Saib xyuas tam sim no | 0.3mA ua |
| Kub | |
| Ua haujlwm kub | -40~70℃ |
| Cia Kub | -40~80℃ |
Daim duab:
