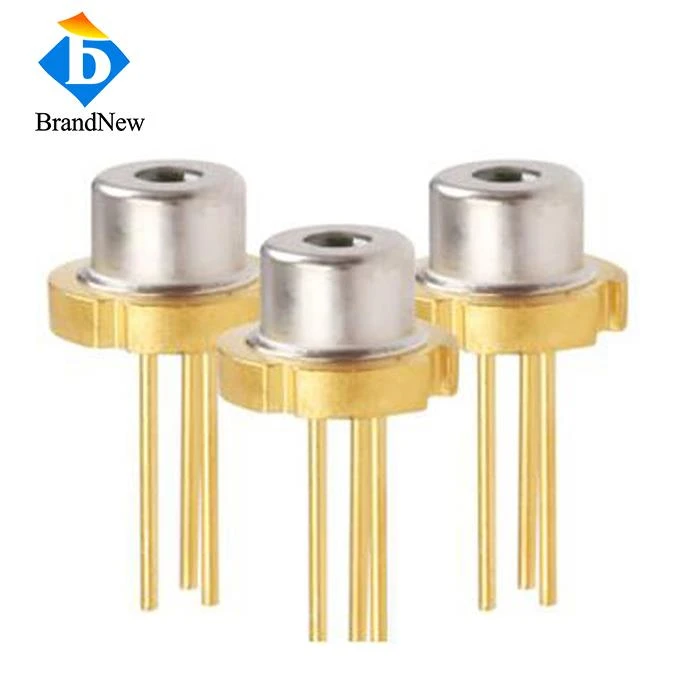

808nm TO-Mount Laser Diode
Product Description
808nm TO-Mount Laser Diode yog qhov siab -kev ua tau zoo ntau hom transverse laser diode. Lub laser emits 500mW optical zog nrog CW hom ntawm 808nm wavelength. 808nm TO-Mount Laser Diode yog kaw los ntawm tus qauv TO-56 pob nrog lub qhov rais tiaj tus. Nta thiab cov txiaj ntsig kev ua haujlwm siab electro-optical thiab hard solder ntim, nws muab kev ua haujlwm txhim khu kev qha nrog kev ua haujlwm siab, Nws yog qhov zoo tagnrho rau kev siv teeb pom kev zoo.
Daim ntawv qhia:
| Yam khoom | Parameter | Chav tsev | Min. | Hom | Max. |
| Kho qhov muag | Tso zis zog | mW | 500 | - | |
| Lasing Wavelength | nm | 804 | 808 | 812 | |
| Spectral Dav | nm | - | 1.0 | 1.2 | |
| Emitting cheeb tsam dav | µm | - | 50 | - | |
| Kub Coefficient | nm / degree | - | 0.30 | - | |
| Fast Axis Divergence | deg | 34 | 38 | ||
| Slow Axis Divergence | deg | - | 7 | 10 | |
| Hluav taws xob | Slope Efficiency | W/A | 1.00 | - | - |
| Hnub Nyoog Tam Sim No | A | - | 0.10 | 0.15 | |
| Kev khiav hauj lwm tam sim no | A | - | 0.50 | 0.56 | |
| Kev khiav hauj lwm voltage | V | - | 1.75 | 2.00 | |
| Lwm tus | Ua haujlwm kub | degree | 10 ~ 50 | ||
| Cia Kub | degree | -10 ~ 60 |
