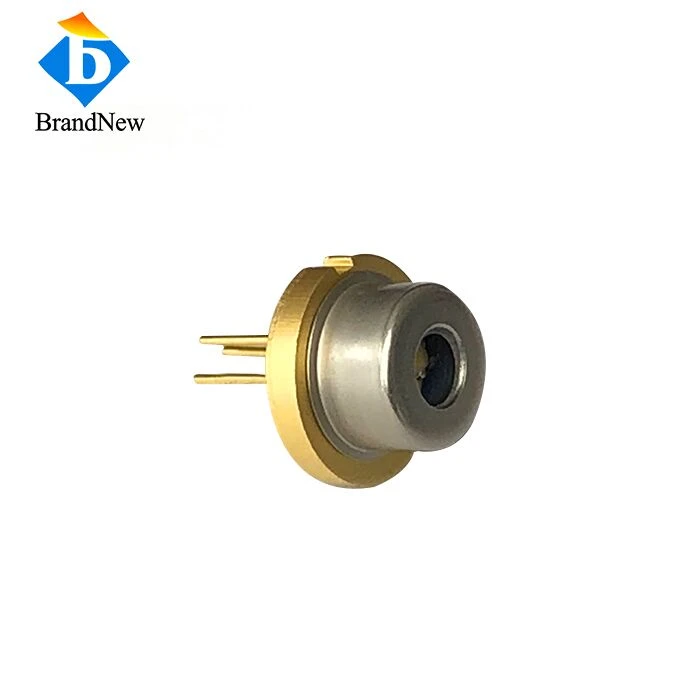

TO-Mount Laser Diode rau Laser Radar
Cov150W 905nm TO-Mount Laser Diodeyog lub siab -hwj chim, siab-efficiency diode tsim los rau kev thov laser radar (LiDAR) thiab ntau yam kev siv. Ua haujlwm ntawm lub wavelength ntawm905nm ua, no diode yog optimized rau mem tes-raws li kev khiav hauj lwm, xa ib tug ncov hwj chim ntawm150W. CovRAU -mountKev ntim khoom kom muaj kev sib koom ua ke, kev tswj xyuas thermal, thiab yooj yim ntawm kev teeb tsa rau hauv ntau lub tshuab. Lub laser diode no zoo tagnrho rau kev siv xws li kev tsav tsheb, kev saib xyuas ib puag ncig, kev ruaj ntseg, thiab kev paub txog kev lag luam.
Cov yam ntxwv tseem ceeb:
Lub wavelength:905nm (Nyob ze -Infrared)
Peak Power Output:150W (kev ua haujlwm siab)
Hom pob:TO-mount pob, kom ntseeg tau tias kev sib koom ua ke yooj yim thiab ua kom zoo thermal dissipation.
Hom kev ua haujlwm:Pulsed lag luam (zoo tagnrho rau laser radar thiab LiDAR daim ntawv thov), muab lub siab ncov lub zog nrog qis nruab nrab siv hluav taws xob.
Beam Quality:Cov kab hluav taws xob zoo heev rau kev ua kom pom kev sib tsoo, ua kom lub hom phiaj meej thiab ntev - nrhiav kom pom ntau yam.
Daim ntawv qhia:
Yam khoom no: TO905DL150
| Kho qhov muag | |
| Center Wavelength | 905nm ua |
| Wavelength kam rau ua | ± 10nm |
| Tso zis zog | ~150W |
| Spectrum FWM | 5nm ua |
| Fast Axis Divergence | <30Degree |
| Slow Axis Divergence | <10Degree |
| Beam Loj | 200 x 10 po |
| Hluav taws xob | |
| Kev khiav hauj lwm tam sim no Iop | 30A |
| Hnub Nyoog Tam Sim No | 1A |
| Kev khiav hauj lwm voltage | 42V |
| Pulse Dav | 100 nsq |
| Repetition zaus | 5kHz ua |
| Lub luag haujlwm Cycle | 0.05% |
| Rov qab Voltage | <6V |
| Kub | |
| Ua haujlwm kub | -40 ~ 70 degree |
| Cia Kub | -40 ~ 85 degree |
| Wavelength kub coefficient | 0.28nm / ºC |
| Soldering Kub | 260 degree |
Kev kos duab
