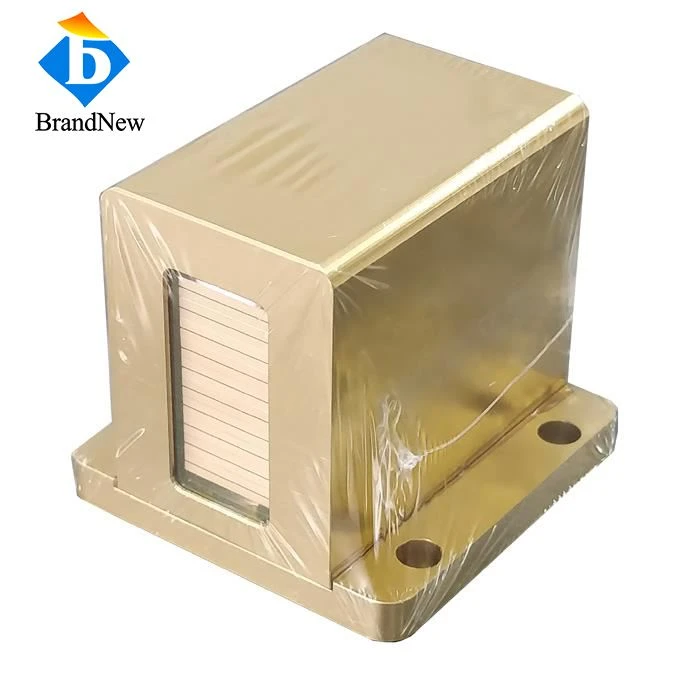

700W 755 808 1064 Laser Diode Txawv
Cov yam ntxwv tseem ceeb:
100W tso zis hluav taws xob rau ib qho bar, 50W lossis 60W muaj
Tus naj npawb ntawm cov khoom siv: 7, tuaj yeem hloov tau
3 Cov khoom siv sib xyaw ua ke: 755nm+808nm+1064nm, ua haujlwm sib txawv ntawm qhov tob hau ntawm plaub hau kom ua tau zoo dua.
Daim Ntawv Thov: Cov qauv tsim tshwj xeeb rau diode laser plaub hau tshem tawm kev zoo nkauj tshuab
Cov khoom pov hwm zoo yog 18 lub hlis.
Tus naj npawb ntawm cov kev txhaj tshuaj: Tsis muaj kev txwv tsis pub dhau 18 lub hlis.
![KNUTMK0M~O]CPJRS%1BX[}9](/Content/uploads/202098745/20200331143553c0a1d5bc3aec439ba222860fe5013125.jpg)
Cov ntaub ntawv cov ntaub ntawv
Yam Khoom No.:WC808VS700
Tau kho qhov muag | |
Qhov chaw Wavelength | 760/808 / 1064nm |
Wavelength kam rau | 10nm |
Hom Haujlwm | QCW |
Rau Cov Zis | 700W |
Tus naj npawb ntawm cov Tuav | 7 |
Ceev Axis Divergence (FWHM) | 38Deg |
Qeeb Axis Divergence (FWHM) | 12Deg |
Mem Tes Dav | ≤400ms |
Plaub ntug voj voog | ≤40% |
Hluav Taws Xob | |
Kev Ua Haujlwm Tam Sim No Iop | ~100A |
Threshold Tam Sim No Ith | ~10A |
Kev Siv Khoom Ua Haujlwm Siab Vop | ~13V |
Muaj Hwj Huam Kev Ua Phem | ~50% |
Thermal | |
Kev khiav hauj lwm kub | 20~30℃ |
Cia Khoom Kub | 0-55℃ |
Pob Teeb Duab
