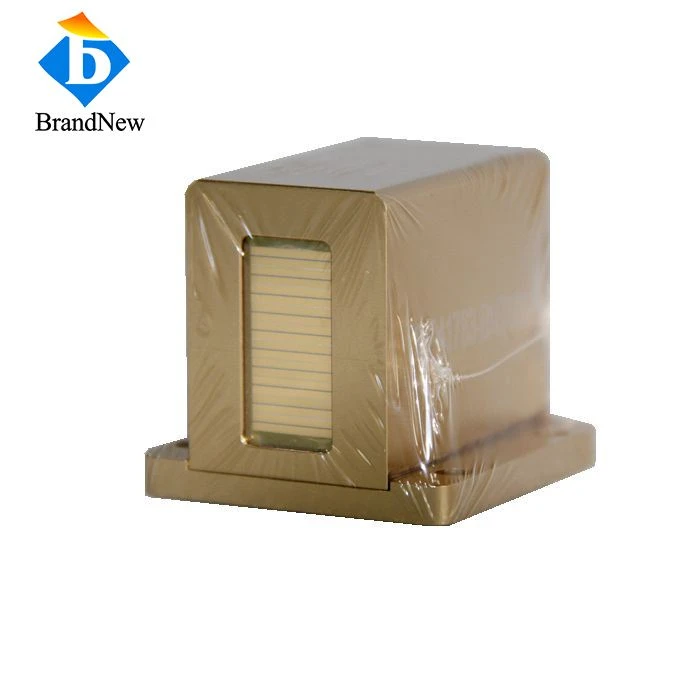

600W 808nm ADSS Vertical Stack Diode Laser Rau Cov Plaub Hau Tshem Tawm Tshuab Kho Kho
600W 6bars 808nm Vertical Diode Laser Stack yog cov qauv siv feem ntau rau kev tshem tawm cov plaub hau. Peb lub laser bar yog imported los ntawm lub teb chaws Yelemees, uas muaj lub neej ntev thiab high efficiency.
Brandnew Technology's Diode Laser Bar Stacks yog qhov kev xaiv zoo rau cov neeg siv khoom.
Muaj peb yam tseem ceeb uas cuam tshuam ncaj qha rau laser kev ntseeg tau, kev ua tau zoo thiab kav ntev: 1. qhov zoo ntawm lub laser bar sab hauv, 2.the sintering txheej txheem, 3.lub txias qauv tsim.
Rau lub diode laser bar, peb imported los ntawm lub ntiaj teb no sab saum toj laser bar manufacturers (los ntawm teb chaws USA thiab lub teb chaws Yelemees).
Customized wavelengths thiab configurations muaj raws li qhov kev thov.
Feature:
Compact designs, yooj yim rau integrate
20 lub hlis zoo warranty
Me me bar-rau-bar suab kom nce brightness
Customized geometry thiab vaj tse muaj
Daim ntawv thov:
Feem ntau rau kev zoo nkauj tshuab
Cryolipolysis Slimming
Teleangiaectasis
IR illumination rau kev soj ntsuam
Kev Tshawb Fawb Txog Kev Tshawb Fawb
Yam khoom no: WC808VS600
Yam khoom: 6bars 808nm ntsug diode laser pawg
| Kho qhov muag | |
| Center Wavelength | 808nm ua |
| Wavelength kam rau ua | ± 10nm |
| Ua hauj lwm hom | QCW |
| Output Power Ib Bar | 100W |
| Number of Bars | 6 |
| Fast Axis Divergence (FWHM) | 38 Deg |
| Slow Axis Divergence (FWHM) | 12 Deg |
| Hluav taws xob | |
| Kev khiav hauj lwm tam sim no Iop | 100A |
| Threshold Current Ith | 20A |
| Ua haujlwm Voltage Vop | 11V |
| Fais fab Hloov Efficiency | 45 feem pua |
| Kub | |
| Ua haujlwm kub | 23-27 ° C |
| Cia Kub | 0-60 degree |
| Lwm tus | |
| Coolant | Lim dej |
| Flow Rate / Bar | 3.5 ~ 4.5L / min |
| Max Inlet Siab | 400-600kPa |
| Dej kub (tsis condensation) | 23 ~ 27 degree (Tsis muaj condensation) |
| Filtered Dej Particles | <> |
Daim duab:
