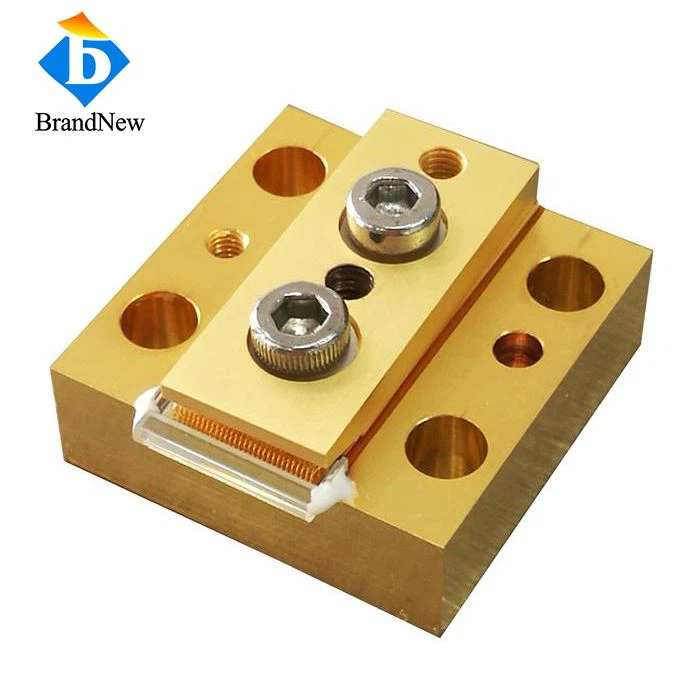

80W 1064nm Hard Solder Diode Laser CS Bar
Txheej txheem cej luam
Feature:
Lub neej ntev thiab kev ntseeg siab
Tsawg luag
Nqaim Spectrum
Ausn Soldering
Hlau Bonding
Kev siv ib puag ncig hnyav
Daim ntawv thov:
Tso dej
Kho mob
Kev luam ntawv
Kev lag luam
Kev Tshawb Fawb Txog Kev Tshawb Fawb
Daim ntawv qhia
Yam khoom no. TIAB SA 1064DL80
| Kho qhov muag | |
| Center Wavelength | 10 60nm |
| Wavelength kam rau ua | ± 5nm |
| Ua hauj lwm hom | CW |
| Tso zis zog | 80W |
| Fast Axis Divergence (FWHM) | 35 Deg |
| Slow Axis Divergence (FWHM) | 8 Deg |
| Hluav taws xob | |
| Kev khiav hauj lwm tam sim no Iop | 88A |
| Threshold Current Ith | 5A |
| Ua haujlwm Voltage Vop | 1.5-2V |
| Fais fab Hloov Efficiency | 60% |
| Kub | |
| Ua haujlwm kub | 15 ~ 30 degree |
| Cia Kub | 0-55 degree |
| Kub Coefficient | ~ 0.3nm / degree |
Pob Drawing
FAQ:
Yuav ua li cas txog kev xa khoom?
Peb tuaj yeem muab qhov rooj rau qhov rooj los ntawm huab cua, nyob ntawm seb koj qhov kev thov tiag tiag. Xws li DHL, UPS, TNT, FEDEX
Lub sijhawm ua haujlwm yog dab tsi?
Nquag 3-5 hnub. Customized khoom xav tau 15 hnub ua haujlwm.
Koj puas muaj MOQ txwv?
Tsawg MOQ, 1pc rau kev kuaj xyuas yog muaj
Cim npe nrov: 80w 1064nm nyuaj solder diode laser cs bar lwm tus neeg, manufacturers Tuam Tshoj, hoobkas, lag luam wholesale, ua nyob rau hauv Suav teb
