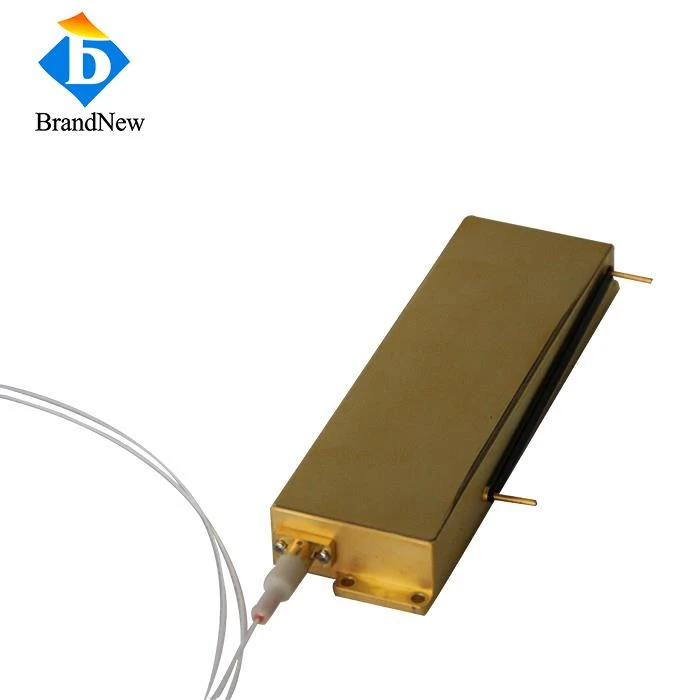

170w 808nm Fiber Coupled Diode Laser rau YAG twj
Product Overview:
Nyob rau hauv cov nqe lus ntawm YAG siv daim ntawv thov, ua hauj lwm nrog Nd li nce nruab nrab kom tau 1064nm thiab qhov nqus hla ntawm Nd yog zoo nkauj npaum li negligeable saum 900nm. 808nm wavelength yog qhov kev xaiv zoo rau kev ua kom lub laser siv tau zoo.
Rau cov qauv no, muaj ob peb emitters yog sib cais thiab optically ua ke ua ke nyob rau hauv ib tug multimode fiber.Yog li cov zis hwj chim yuav mus txog 170 watts. Siab tshaj plaws nyob rau hauv lub lag luam laser thoob plaws lub ntiaj teb no.
Yam khoom no: FC808DL170
Khoom npe: 170w 808nm fiber ntau siv laser
| Kho qhov muag | |
| Center Wavelength | 808nm ua |
| Wavelength kam rau ua | ± 5nm |
| Tso zis zog | 170W |
| Spectral Width FWM | 4, 5nm |
| Slope Efficiency | 15W/A |
| Fiber ntau | |
| Fiber Khoov Radius | & gt; 60 mm |
| Fiber tub ntxhais | 200 ua |
| Fiber Length | 1.5m |
| Fiber ntau aperture | 0.22 NOS |
| Fiber Connector | Liab los yog SMA905 |
| Hluav taws xob | |
| Kev khiav hauj lwm tam sim no Iop | 11A |
| Threshold Current Ith | 1.0A |
| Kev khiav hauj lwm Voltage Vop | 33.5V |
| Fais fab Hloov Ua Haujlwm | 45% |
| Kub | |
| Ua haujlwm kub | 15~35℃ |
| Cia Kub | -20~70℃ |
| Wavelength Temperature Coefficient | 0.3nm / ℃ |
Paub meej Drawing:
Fiber coupled diode laser module yog dav siv nyob rau hauv YAGpumping, marking, txiav, engraving, thiab kev tshawb fawb. BrandNew Technology muaj cov emitters tshwj xeeb sib txuas patent thiab tso zis zog ntawm 808nm fiber ntau txuas diode laser tuaj yeem ncav cuag 170W. Cov wavelengths yog 793nm, 808nm, 915nm, 940nm, 976nm, 1064nm (lwm tus neeg thov).
