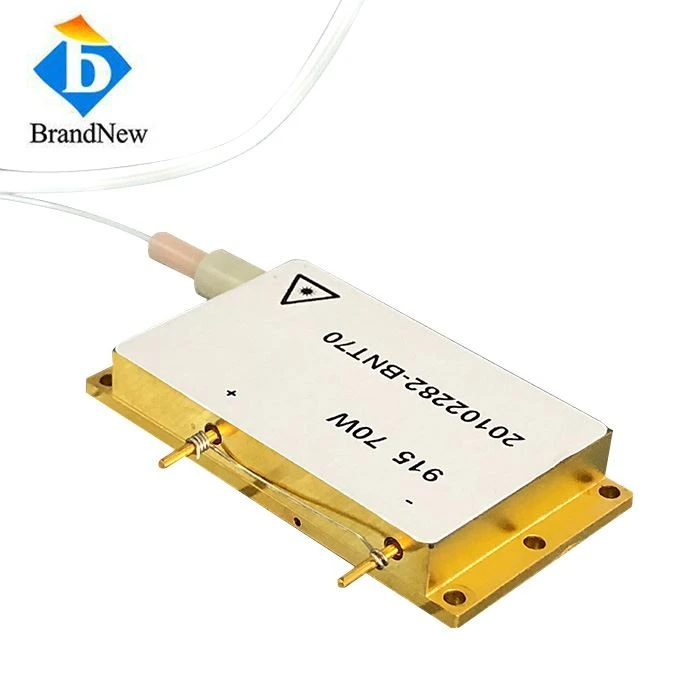

80W 915nm Fiber LD Module
Nta:
Ntawm 915nm nruab nrab wavelength
Nrog ib tug 105μm core fiber, NA ntawm 0.22 thiab fiber ntev ntawm 1.5 meters
Fiber ntev tuaj yeem hloov kho
High E / O efficiency, siab stability thiab superior beam zoo
Daim ntawv thov:
Solid-state laser twj tso kua mis
Kev siv kho mob
Kev ua cov khoom siv
Daim ntawv Spec
Yam Khoom: FC915DL80
| Kho qhov muag | |
| Center Wavelength | 915 ± 10nm |
| Tso zis zog | 80W |
| Slope Efficiency | 4W/A |
| Fiber ntau | |
| Fiber Khoov Radius | 60 hli |
| Fiber tub ntxhais | 105 ua |
| Fiber Length | 1-2m |
| Fiber ntau aperture | 0.22 NOS |
| Fiber Connector | SMA905 |
| Hluav taws xob | |
| Kev khiav hauj lwm tam sim no Iop | 14.5A |
| Threshold Current Ith | 1.1A |
| Kev khiav hauj lwm Voltage Vop | 9.6V |
| Fais fab Hloov Ua Haujlwm | 50% |
| Kub | |
| Ua haujlwm kub | 15~35℃ |
| Cia Kub | -20~70℃ |
| Wavelength Temperature Coefficient | 0.3nm / ℃ |
Qhov ntev
Lub teeb laser emissions los ntawm cov cuab yeej no tsis pom thiab yuav ua rau tib neeg lub qhov muag. Tsis txhob saib ncaj qha mus rau hauv cov zis fiber ntau los yog mus rau hauv cov kab sib dhos nrog nws cov axis kho qhov muag thaum lub cuab yeej ua haujlwm. Cov looj tsom iav zoo laser yuav tsum hnav thaum ua haujlwm.
