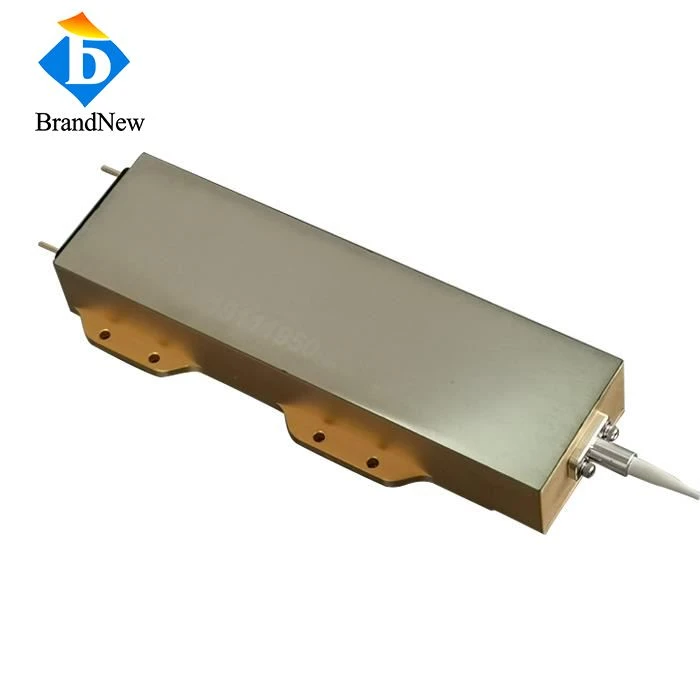

Fiber Coupled Laser Diode Module
Kev xaiv:
450nm txog 200W
793nm txog 140W
808nm txog 180W
915nm txog 750W
940nm txog 200W
976nm txog 320W
1064nm txog 30W
1550nm mus txog 60W Pulsed
1940nm mus txog 10W
2100nm txog 10W
Standard Fiber tub ntxhais: los ntawm 50um 105um, 200um, 400um, 800um
Lwm yam nta: TEC, Aiming Beam, PD, Thermistor, Multi-wave, Fiber Detachable, SMA905, ST, FC
Yog xav paub ntxiv, pls xav tiv tauj peb ntawm Email: info@brandnew-china.com
Cov ntaub ntawv ntawm cov khoom kub
Yam khoom no: FC808DL150
| Kho qhov muag | |
| Center Wavelength | 808nm ua |
| Wavelength kam rau ua | ± 5nm |
| Tso zis zog | 150W |
| Spectral Width FWM | 4.5nm ua |
| Slope Efficiency | 15W/A |
| Hluav taws xob | |
| Kev khiav hauj lwm tam sim no Iop | 11A |
| Threshold Current Ith | 1.0A |
| Ua haujlwm Voltage Vop | 33.5V |
| Fais fab Hloov Efficiency | 45% |
| Kub | |
| Ua haujlwm kub | 15-35 ° C |
| Cia Kub | -20 ~ 70 degree |
| Wavelength Temperature Coefficient | -0.3nm / degree |
Kev kos duab
Cim npe nrov: fiber ntau txuas laser diode module lwm tus neeg, manufacturers Tuam Tshoj, hoobkas, lag luam wholesale, ua nyob rau hauv Suav teb
