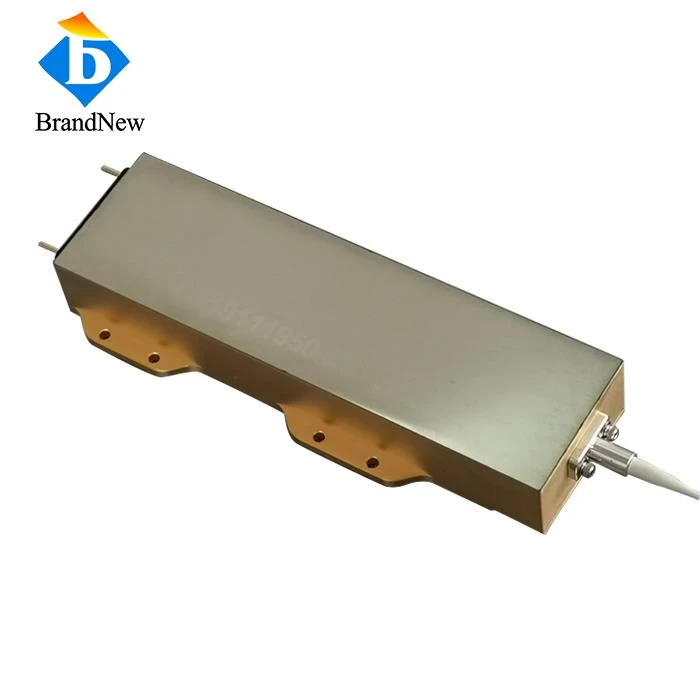

150W 878.6nm VBG DPSSL Pumping Diode
Lub zog ntawm cov khoom siv xauv qhov sib txuas yog 20-170W; Tom qab xyoo ntawm kev txheeb xyuas hauv cov neeg siv khoom, qhov kev ua tau zoo yog qhov pom tseeb, tuaj yeem siv los ua cov khoom siv lub xeev laser thiab khoom picosecond laser twj tso kua mis.
Feature:
878.6nm nruab nrab wavelength, 150W tso zis zog
Fiber Bragg grating stabilization nrog 0.5nm wavelength kam rau ua
High zog conversion efficiency
High Reliability thiab stability
Daim ntawv thov:
DPSSL Pumping, khoom lub xeev laser twj
Daim ntawv thov kev lag luam
Kev ua cov khoom siv
Daim ntawv qhia
Yam khoom no: FC8786WS150
| Kho qhov muag | |
| Center Wavelength | 878.6 ± 0.5nm |
| Tso zis zog | 150W |
| Spectral Width FWM | 0,5nm ua |
| Fiber ntau | |
| Fiber Core Diameter | 200 ua |
| Fiber Length | 1.5m |
| Fiber Connector | SMA905 |
| Hluav taws xob | |
| Kev khiav hauj lwm tam sim no | 10A |
| Hnub Nyoog Tam Sim No | 1A |
| Kev khiav hauj lwm voltage | 37V |
| Kub | |
| Ua haujlwm kub | 20 ~ 30 degree |
| Cia Kub | -20 ~ 70 degree |
| Wavelength Temperature Coefficient | ~ 0.02nm / degree |
Kev kos duab
![}]Q402VL%Q~5JDPLV2]]FJ2](/Content/uploads/202198745/20210517165219c5863e7d4e5d4d9aae42fcf864098cad.png "product-1-1")
FAQ:
Koj puas muab kev lees paub rau cov khoom?
Yog, tag nrho cov khoom tau raug kuaj ua ntej xa tawm.
Kev pab txhawb nqa lub neej ntev . 2 xyoo warranty.
