VCSEL Diode Laser Stack Cov plaub hau tshem tawm tshuab
Lub ntsiab nta:
Me divergence kaum sab xis thiab ntau yam teeb pom kev zoo
Tsawg drift coefficient thiab nqaim spectral dav
Symmetrical qhov chaw, yooj yim rau cov duab
High stability thiab kev ntseeg siab
Macro channel tshav kub dissipation qauv, yooj yim dej txias
Tag nrho kaw nitrogen filling kev kho mob, muaj zog ib puag ncig adaptability
Yam khoom no: VC808VS600

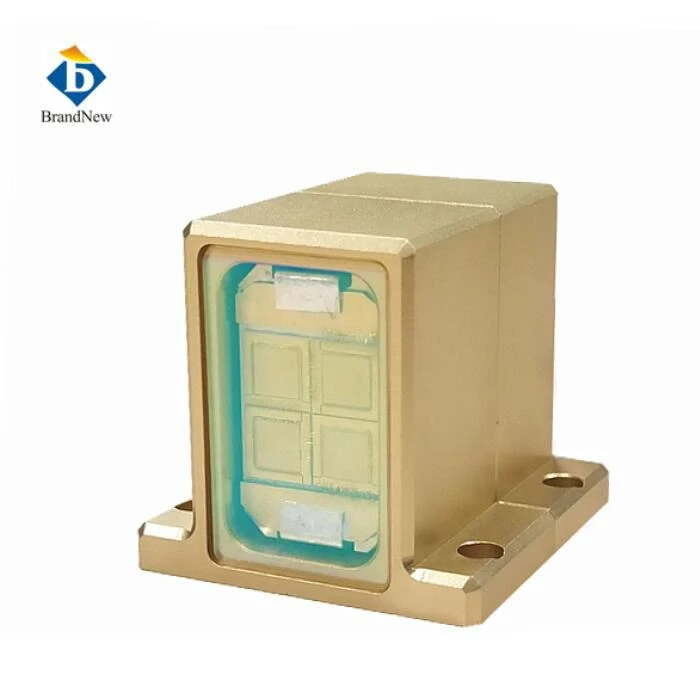

Yam khoom: 600w 808nm VCSEL Diode Laser Stack
| Kho qhov muag | |
| Center Wavelength | 808nm ua |
| Wavelength kam rau ua | ± 8nm |
| Ua hauj lwm hom | QCW |
| Peak zog | 150W / nti |
| Qhov Loj | 12.7X12.7 |
| Fast Axis Divergence (FWHM) | 38 Deg |
| Slow Axis Divergence (FWHM) | 12 Deg |
| Pulse Dav | Tsawg dua lossis sib npaug li 400mS |
| Lub luag haujlwm Cycle | Tsawg dua lossis sib npaug li 60% |
| Hluav taws xob | |
| Kev khiav hauj lwm tam sim no Iop | 65A |
| Threshold Current Ith | 10A |
| Ua haujlwm Voltage Vop | 8V |
| Fais fab Hloov Efficiency | 45~48% |
| Kub | |
| Ua haujlwm kub | 15 ~ 30 degree |
| Cia Kub | 0-55 degree |
Paub meej Drawing:
